TheHive 3.1.2 & Cortex 2.1.2 Released

We could not leave for the week-end without issuing a minor release or two so here we go.

TheHive 3.1.2

Starting from TheHive 3.0.1, an administrator has the ability to configure Cortex job polling by defining the time between two polls thanks to the cortex.refreshDelay parameter as well as the number of consecutive failures before giving up (via cortex.MaxRetryOnError). However, these settings prevent the service from starting correctly. TheHive 3.1.2 corrects this issue.

Cortex 2.1.2

When running a job in Cortex with the exact same details, the function findSimilarJob is called. It should return results from any previous jobs, but in the latest versions (2.1.0, 2.1.1) it does not because of a change that went past our QA.

In a similar fashion, the GUI search function was broken. Cortex 2.1.2 fixes both issues.

Excuse my French but I Need Help

Keep calm. We speak French. So if you encounter any difficulty to update TheHive or Cortex, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are always ready to help as does our user community.

TheHive4py 1.5.1 Released

When you need to interact with TheHive’s REST API and you ain’t shy of working with Python, TheHive4py is the way to go. It’s a free, open source library we provide to allow you to easily create alert feeders, automate certain tasks like creating cases, assign them to analysts and much more. For example, Synapse, DigitalShadows2TH and Zerofox2TH leverage the library to send alerts to your favourite SIRP/SOAR.

Sometime ago, we decided that it was time to overhaul the whole library and we began working on version 2.0.0 which will be easier to use. It should also support the full set of TheHive’s REST API calls. In the meantime we decided to release version 1.5.0, shortly followed by version 1.5.1 to support some new functionality contributed by our user community and correct a few issues.

code_quality
Source : XKCD

New Features Introduced in 1.5.0

Bugfixes Introduced in 1.5.0

  • #80: Prevent max recursion depth exceeded error, contributed by Psynbiotik

New Features Introduced in 1.5.1

Important note: TheHive4py 1.5.1 does not work with TheHive 3.0.10 or earlier versions. Please stick with 1.5.0 if you are using those versions.

Updating/Installing

To update your existing package:

$ sudo pip install thehive4py --upgrade

If you are just getting started with TheHive4py, you can forgo the --upgrade at the end of the command above.

But I just Wanna Play!

If you’d like to play around with TheHive4py 1.5.1, TheHive 3.1.1., Cortex4py 2.0.1 and Cortex 2.1.1, please download the training VM.

Paris? Are you There?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. As usual, we’ll be more than happy to help!

Correction: October 12, 2018
As reported by Robin Hahling, TheHive 1.5.1 does not work with TheHive 3.0.10 or earlier versions.

Hold your breath and git pull

Cortex-Analyzer 1.13.0 is out and includes new analyzers, some improvements and few bug fixes :

  • Hunter.io has been contributed by Rémi Allain (@remiallain)
  • DShield lookup contributed by Xavier Martens (@xme)
  • Pulsedive contributed by Nils Kuhnert (@3c7, TheHive Project)
  • FileInfo has been enhanced with Manalyze submodule for PE analysis ; by @lctrcl and Nils Kuhnert (@3c7)
  • Thanks to @silrumpa, the Fortiguard_URLCategory analyzer has been updated and let you configure categories and customize theirs maliciousness level
  • PhishingInitiative analyzer has been flavoured with a scan facility, thanks to Rémi Pointel

Huge thanks for the awesome work that has been performed by all our contributors!

Hunterio_DomainSearch

Hunter.io is a search engine that lets you find emails associated with a given domain name. The analyzer can be used to query the API and get a list of email addresses for a specific domain name. An API key is required to use this analyzer and can be obtained by registering on the website.

Results are displayed in TheHive in the following manner:

sc-hunterio-short

sc-hunterio-long
Hunterio_DomainSearch: short and long report samples

DShield_lookup

The analyzer lets you query the famous SANS Internet Storm Center (ISC) DShield API and look up IP address reputation. No API key is needed to run this analyzer.

Results are displayed in TheHive in the following manner:

sc-dshield-short
sc-dshield-long
DShield_lookup: short and long report templates

Pulsedive_GetIndicator

Pulsedive is a Threat Intelligence platform that allows you to enrich your observables. The analyzer can be used to query  the API and get information about a domain name,  hash, IP or URL. An API key is required to use this analyzer and can be acquired by creating an account on the webiste.

Results are displayed in TheHive in the following manner:

sc-pulsedive-short

sc-pulsedive-long
Pulsedive_GetIndicator: short and long report templates

Manalyze joins FileInfo

Manalyze is a tool developed by Ivan Kwiatkowski (@JusticeRage) that lets you analyze, operate PE (Portable Executable) and collect useful artifacts that help the analyst in determining its maliciousness.

@lctrcl wrote an analyzer that triggers Manalyze on a PE file and gives the analyst a useful report. Nils Kuhnert (@3c7) from TheHive Project then included this analyzer as a submodule into our FileInfo meta-analyzer for files ; it can run Manalyze from compiled binary, or, if your Cortex server is ready for that, through the right docker. If you decide to use the compiled binary, please follow instruction from Manalyze github page.

This submodule is disabled by default. To use it, you have to set some configuration in Cortex:

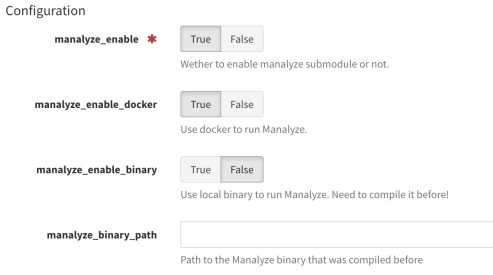

sc-fileinfo-config
FileInfo: configuration for Manalyze in Cortex

Results are displayed in TheHive in the following manner:

sc-fileinfo-short3

sc-fileinfo-long3
Manalyze submodule: short and long report templates

Fortiguard_URLCategory

This analyzer has been enhanced to let analysts choose categories considered as malicious or suspicious. It comes with a default configuration but you can setup your own by selecting the categories from the Fortiguard website.

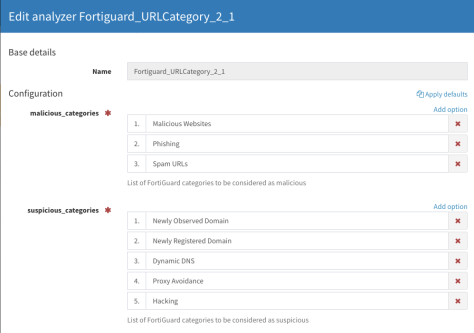

sc-fortiguard-config
Fortiguard_URLCategory: default configuration for categories  in Cortex

Select which categories you want to be considered malicious or suspicious, and others will be considered by the analyzer as info. Analyzed observables that are not categorised by Fortigard service is considered as safe.

PhishingInitiative_Scan

PhishingInitiative has been enhanced with a new scan flavor. This let the analyst submit an URL to the webservice. An API key is needed to run this analyzer and can be obtained by registering on the website.

Results are displayed in TheHive in the following manner:

sc-phishinginitiative-short

sc-phishinginitiative-long
PhishingInitiative_Scan: short and long report samples

Bug fixes

  • #335 : fix a bug in MISP analyzer
  • #340 : fix short report template in C1fApp
  • #339 : fix short and mini reports for Domaintools Whois history flavor

Get It While Supply Lasts!

Each analyzer comes with its own, pip compatible requirements.txt file. To update your Cortex analyzers to 1.13.0, run the following commands:

cd path/to/Cortex-Analyzers
git pull
for I in analyzers//requirements.txt; do sudo -H pip2 install -r $I; done && \
for I in analyzers/
/requirements.txt; do sudo -H pip3 install -r $I || true; done

Once done, do not forget to login to Cortex as an orgadmin and click on the Refresh Analyzers button. Refer to the online Cortex documentation for further details.

Update TheHive Report Templates

If you are using TheHive, get the latest version of  the report templates and import them into TheHive.

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

Correction: September 25, 2018
The link to the report templates was incorrect.

TheHive 3.1.0-RC2 is Out!

After a nice summer break which allowed us to rest and enjoy Real Life™ (mostly) away from keyboards, screens and constant distractions and interruptions, we set to take into account the bug reports and feedback on TheHive 3.1.0-RC1 which we released a day or so before packing up for the mountains and elsewhere.

We are pleased to announce the immediate availability of Release Candidate 2 for TheHive 3.1.0. It contains numerous bug fixes and enhancements. You can read the full change log if you have nothing better to do with your life.

Among the changes we introduce in this new RC, we would like to highlight the following:

  • #652: the ability to set custom fields as mandatory.
  • #685: the quick case search box on the top navigation bar has been restored as it is highly useful for quick lookups without having to resort to the revamped search page.
  • #667: use alternative authentication methods when certificate authentification is enabled and the client does not present a certificate.

We would also like to thank Marc-André Doll for contributing a nice UX enhancement and GitHub user secdecompiled for adding the ability to view alerts and cases with large descriptions in an easy way.

We encourage you to take TheHive 3.1.0-RC2 for a spin as quickly as you can and report any bug or issue so we can address them for the final release, scheduled in a couple of weeks. Cortex 2.1.0 is still at RC1 and we should be able to make a stable release at the same date as TheHive 3.1.0.

Important Note

We would like to remind you that starting from these versions, we have two release channels: a stable one that should be used for production systems and a pre-release channel that should be used to try the release candidates such as TheHive 3.1-RC2 and Cortex 2.1-RC1, and help us iron out bugs before adding them to the stable channel. Those who love living on the bleeding edge may be tempted by running the release candidates on their production environment given all the candy and icing we added. They are at liberty of doing so but we don’t want to hear anyone one whining about an RC that broke everything and beyond.

We also moved our package and binary repositories to https://bintray.com/thehive-project and Docker images are now under thehiveproject.

Please check TheHive Installation and Cortex Installation guides for further details.

Running into Troubles?

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

How to Cruise Ocean Threat Without Sinking Using TheHive 3.1 & Cortex 2.1

Paris, France. The Sun is shining on the city of lights and temperatures are quite high, even for the summer season. Life is good. As a matter of fact, life is excellent.

TheHive Master Cooks are about to go on vacation for a few weeks. But before they pack up their Patagonia bags and leave the sandy beaches for those who enjoy them, preferring mountains, trails, walking and breathing fresh air with family and friends, they would like to make a significant contribution to help TheHive and Cortex users fight cyberattacks even better than they already do. And maybe convince those who don’t that free, open source software is not a joke or a geek fad.

We’d like to welcome to the stage our latest babies, which we are really proud of: TheHive 3.1 and Cortex 2.1, the new versions of the power duo which make digital forensics, incident response and, to an extent, cyber threat intelligence, better, faster, happier, regular exercising (well you know the Radiohead song so we’ll let you continue singing along) since early 2017.

While our project might seem very young, it is not. We’ve been working steadily on TheHive, using it (i.e. eating our own dog food) since early 2014 before releasing it at the end of 2016 once we were satisfied with it, as a token of gratitude to a community that helped us due our jobs in various ways. We then extracted what has become Cortex from its core to ship it as a separate product in February 2017. And we kept improving them at a steady piece for the collective benefit of incident responders, forensicators and threat analysts. And adoption has been rather spectacular. Thanks to all of our users for their love and support!

We believe we are at a moment where people could not brush us off anymore as amateurs. Try TheHive and Cortex, preferably with MISP and get a taste of what professional, free and open source software can be.

TheHive 3.1 and Cortex 2.1 are feature-packed and we won’t be able to cover them all in detail in a single blog post. Rather, we’d like to concentrate on a few important ones.

Stable, Pre-release Channels and New Repositories

We’d like to point out that, in order to improve our release process and given the number of features that we added, TheHive 3.1 and Cortex 2.1 are release candidates at this stage. So we encourage you to test them and report back any bugs or issues you encounter so we can address them and make the final releases as rock-solid as possible.

We have now two release channels: a stable one that should be used for production systems and a pre-release channel that should be used to try the release candidates such as TheHive 3.1-RC1 and Cortex 2.1-RC1, the subjects of this blog post, and help us iron out bugs before adding them to the stable channel. Those who love living on the bleeding edge may be tempted by running the release candidates on their production environment given all the candy and icing we added. They are at liberty of doing so but we don’t want to hear anyone one whining about an RC that broke everything and asking for their money back grin.

We also moved our package and binary repositories to https://bintray.com/thehive-project and Docker images are now under thehiveproject.

Please check TheHive Installation and Cortex Installation guides for further details.

MISP with a Purpose

In previous releases of TheHive, whenever you configured a MISP instance, it was used to import events from and export cases to. Starting from TheHive 3.1.0, we added a purpose to the configuration file. By default, any added MISP instance will be used for import and export (ImportAndExport). However you can configure it to be used for importing events only (ImportOnly) or exporting cases only (ExportOnly).

Extended Events

When an analyst attempts to update a MISP event on which the account used by TheHive to connect to the MISP instance is not part of the original author’s organization, previous versions of TheHive will display a you do not have permission to do that error produced by MISP. Starting from TheHive 3.1, analysts have the ability to create a MISP extended event.

Task Grouping

Case tasks can now be associated with task groups. For example, you could create groups called Identification and Malware Analysis, Containment and Communication and add tasks to them. Of course, this new feature can be used when designing case templates as well.

Import Observables from Analyzer Output

If analyzers produce a set of artifacts in their output (which is the case of several existing ones), TheHive will give you the ability to select those artifacts very easily and add them to your case as observables.

ZIP File Upload

Austin Haigh contributed an important feature which will allow analysts to directly import password-protected ZIP files into a case. The code uses the supplied password when adding the archive to extract its contents and add them one by one to the existing set of observables. This is highly practical when you want to add suspicious files without risking an accidental click which would compromise your endpoint or having to unzip archives containing such files first then add them one by one to TheHive.

Revamped Search Page

The search page has been completely revamped as shown in the screenshot below:

The New Search Page

You can now select your search scope (cases, tasks, observables, alerts, analyser reports a.k.a. jobs or even the audit logs), apply filters and search TheHive without having to resort to complex, mind numbing Lucene syntax.

Responders and PAP

Last but not least, TheHive and Cortex offer you response capabilities (i.e. perform an action depending on the context) thanks to a new breed of programs called … wait for it … wait for it … responders. TADA!

Responders are very similar to analyzers. In fact we’ve taken the concept and extended it to apply to different elements in TheHive: alerts, cases, tasks, task logs, and observables of course.

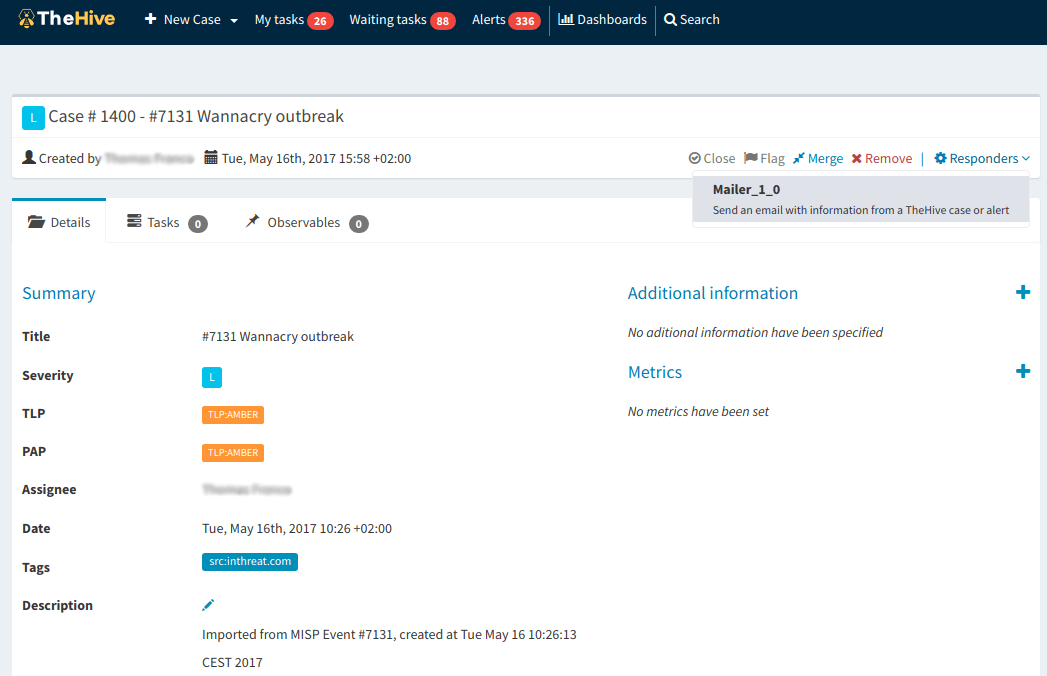

Responders in Action

You can reuse almost the same principles that apply to analyzers to write your own responders and if you are feeling generous, contribute them to the community. To give you a head start, we published a sample Mailer responder which, when customized for your environment, should allow you to send emails to inform your fellow analysts that a case has been created and that their help is required. Another example could be the ability to respond to a suspicious email report from a user, which is displayed as an alert, that they can safely ignore the corresponding email.

Like an analyzer, a responder can have two or more service interaction files (or flavors) to allow it to perform different actions. For example, a Mailer responder can send messages using several body templates.

Thanks to our long-time friend Andras Iklody from MISP Project who brought that to our attention, responders (and analyzers starting from Cortex 2.1) support PAP, the Permissible Actions Protocol.

Running into Troubles?

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.







Cortex-Analyzers 1.10.2

On June 6, 2018, we released Cortex-Analyzers 1.10, which contained 11 new analyzers, bringing the total to 83 programs. You read that correctly: 83 ways to assess and gain insight on observables collected during the course of an investigation or while performing threat intelligence thanks to Cortex, our free & open source analysis engine. One day after, we published version 1.10.1 which fixed the name of the Anomali STAXX reports for TheHive. Since then we uncovered a few additional issues which version 1.10.2 corrects:

  • #273 & #283: two encoding issues in the ThreatCrowd JSON definition file
  • #275: the GreyNoise mini-report for TheHive did not produce any information when no record was found
  • #278: the IBM X-Force analyzer forced the TLP in its configuration
  • #279: the VMRay should authorize self-signed certificates
  • #280: the name of the IBM X-Force Exchange report folder was incorrect preventing TheHive from displaying mini-reports or usefully laid out long ones

To install this hotfix release on your Cortex instance:

$ cd /path/to/Cortex-Analyzers
$ sudo git pull

Then log in to the Cortex Web UI as an orgAdmin and click on Refresh Analyzers:

click

If you are using TheHive, make sure to download the latest version of the report templates and import them into your instance.

Support

Something does not work as expected? No worries, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

There are More than 80 Ways to Analyze Them

TheHive Project Chefs are pleased to announce the immediate availability of Cortex-Analyzers 1.10.1. To install this new release and benefit from 11 new analyzers and some fixes:

$ cd /path/to/Cortex-Analyzers
$ sudo git pull
$ for I in analyzers/*/requirements.txt; do sudo -H pip2 install -r $I; done && \
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -r $I || true; done

After running these commands, read the Analyzer Requirements Guide,  log into the Cortex 2 Web UI as an orgAdmin, click on the Refresh Analyzers button in the Cortex Web UI, configure the new analyzers and enjoy!

Cortex: click on Refresh Analyzers after updating to the latest Cortex-analyzers version

If you are using TheHive, get the last version of  the report templates and import them into TheHive.

New Analyzers

We have added 11 analyzers to this release, bringing the total to 53 (83 if we count all the flavors):

  1. Crtsh: contributed by crackytsi
  2. Cybercrime-Tracker: contributed by ph34tur3
  3. FireEye iSIGHT: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  4. GreyNoise: contributed by Nclose
  5. IBM X-Force: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  6. Malwares: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  7. MnemonicPDNS: contributed by Michael Stensrud from the Nordic Financial CERT
  8. StaxxSearch: contributed by Robert Nixon
  9. StopForumSpam: contributed by Marc-André Doll from STARC (by EXAPROBE)
  10. ThreatCrowd: contributed by Rémi Allain from Cyberprotect
  11. Unshortenlink: contributed by Rémi Pointel from CERT-BDF

Crtsh

Get Crt.sh certificate transparency lists associated with a domain name. Crt.sh is an online service operated by the Comodo Certificate Authority.

The analyzer comes in only one flavor. No configuration is required. It can be used out of the box.

Screen Shot 2018-06-05 at 16.46.22.png

Screen Shot 2018-06-05 at 16.46.31.png
TheHive: Crtsh — Short and Long Report Samples

Cybercrime-Tracker

Use the Cybercrime-tracker.net service to assess whether an IP address, URL, domain, or FQDN has a C2 (Command & Control) entry in its database.

This analyzer comes in only one flavor. No configuration is required. It can be used out of the box.

Screenshot from 2018-06-05 14-43-54.png

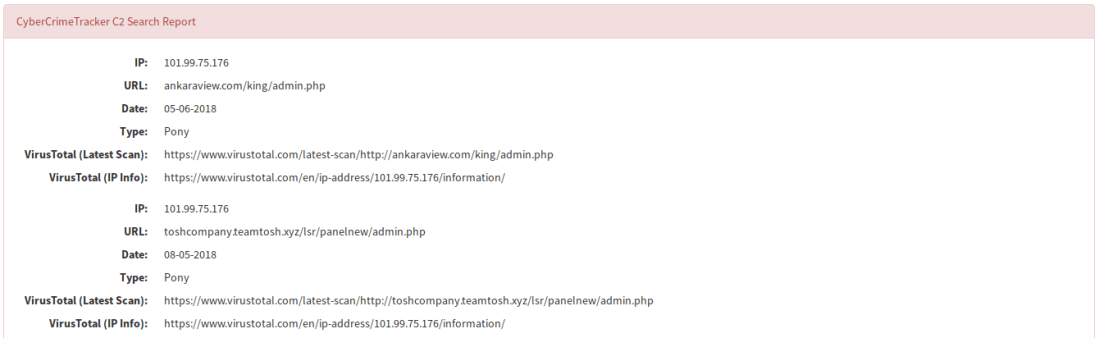

Screenshot from 2018-06-05 14-43-37.png
TheHive: CyberCrime-Tracker — Short and Long Report Samples

FireEye iSIGHT

Leverage FireEye iSIGHT Threat Intelligence to qualify domains, IP addresses, hashes and URLs.

This analyzer comes in only one flavor. You need a valid FireEye iSIGHT Threat Intelligence subscription to use the analyzer. Retrieve the API key associated with your account and provide it as a value to the key parameter. Obtain the password associated with the API key and provide it as a value to the pwd parameter.

TheHive: FireEye iSIGHT — Long Report Sample (courtesy of Andrea Garavaglia)

GreyNoise

Determine whether an IP has known scanning activity using GreyNoise.

This analyzer comes in only one flavor. It can be used out of the box without configuration. However, if you make many requests, you need to obtain an API key. Please contact GreyNoise to ask for one. Once you get the API key, provide it as the value of the key parameter.

Screenshot from 2018-06-05 14-48-02.png

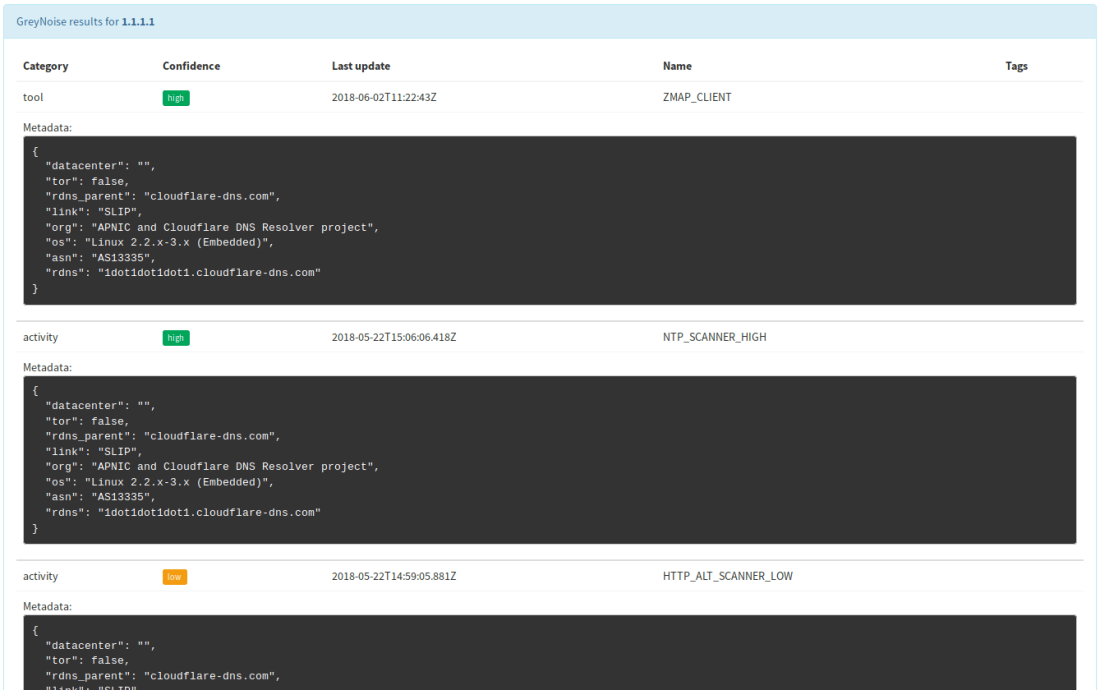

Screenshot from 2018-06-05 14-47-42.png
TheHive: GreyNoise — Short and Long Report Samples

IBM X-Force

Query domains, IPs, hashes and URLs against IBM X-Force Threat Intelligence sharing platform.

This analyzer comes in only one flavor. Access to IBM X-Force Threat Exchange requires an IBM ID. Once you have access to the service, supply the URL of the service as value for the url parameter, the API key associated with your account as value for the key parameter and the associated password as the value of the pwd parameter.

TheHive: IBM X-Force — Long Report Sample (courtesy of Andrea Garavaglia)

Malwares

Query Malwares.com and get reports on files, hashes, domain names and IP addresses.

The analyzer comes in two flavors:
– Malwares_pDNS_GetReport: get the latest Malwares report for a file,
hash, domain or an IP address.
– Malwares_pDNS_Scan: scan a file or URL.

You need to sign up for a Malwares.com account. An API key to use the service’s API should be associated with your account. Supply it as the value of the key parameter.

Screen Shot 2018-06-05 at 16.56.38.png

Screen Shot 2018-06-05 at 16.56.57.png
TheHive: Malwares_GetReport — Short and Long Report Samples

MnemonicPDNS

Query IP addresses and domain names against Mnemonic Passive DNS service.

This analyzer comes in two flavors:

  • Mnemonic_pDNS_Public: query Mnemonic’s public service.
  • Mnemonic_pDNS_Closed: query Mnemonic’s closed service.

When using the public service, the analyzer can be used out of the box with no further configuration. When using the closed service, you need to contact Mnemonic to get an API key which you’ll need to supply as the value of the key parameter.

Screenshot from 2018-06-05 14-46-40.png

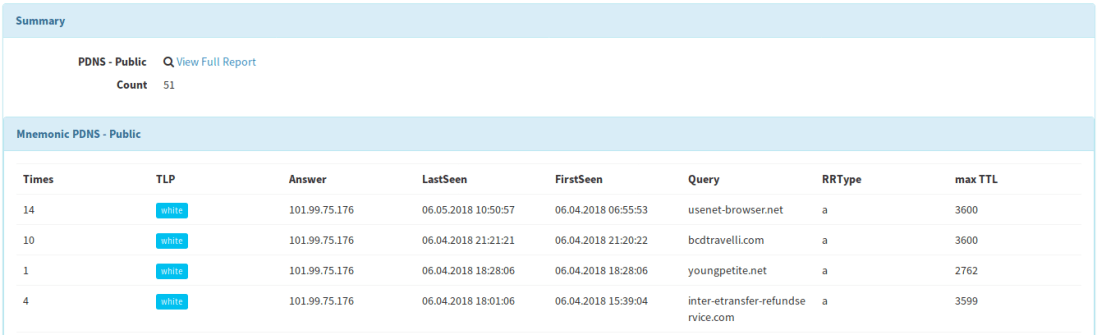

Screenshot from 2018-06-05 14-46-19.png
TheHive: Mnemonic PDNS — Short and Long Report Samples

StaxxSearch

Fetch observable details from an Anomali STAXX instance.

This analyzer comes in only one flavor. You need to install an Anomali STAXX instance or to have access to one to use the analyzer. Supply the following parameters to the analyzer in order to use it:

  • auth_url: URL of the authentication endpoint.
  • query_url: URL of the intelligence endpoint.
  • username: the STAXX user name.
  • password: the STAXX password.
  • cert_check: boolean indicating whether the certificate of the endpoint must be checked or not.
  • cert_path: path to the CA on the system to validate the endpoint’s certificate if cert_check is true.


TheHive: StaxxSearch — Short and Long Report Samples (courtesy of Robert Nixon)

StopForumSpam

Query StopForumSpam to check if an IP or email address is a known spammer.

You need to define the thresholds above which the analyzed observable should be marked as suspicious or malicious.

Screen Shot 2018-06-05 at 18.32.08.png

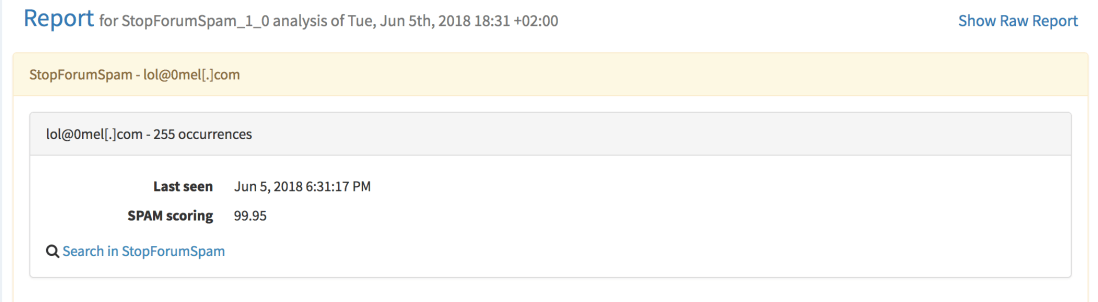

Screen Shot 2018-06-05 at 18.32.21.png
TheHive: StopForumSpam — Short and Long Report Samples

ThreatCrowd

Look up domains, mail and IP addresses on [ThreatCrowd(https://www.threatcrowd.org/), a service powered by AlienVault.

This analyzer comes in only one flavor. No configuration is needed. It can be used out of the box.

Screenshot from 2018-06-05 14-45-29.png

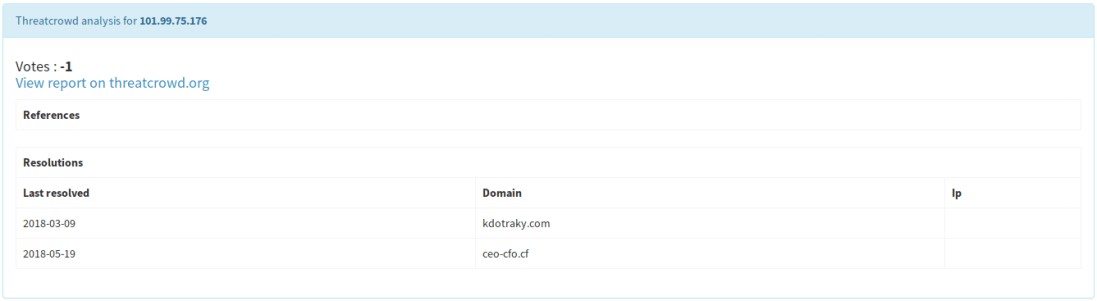

Screenshot from 2018-06-05 14-45-11.png
TheHive: Threatcrowd — Short and Long Report Samples

Unshortenlink

Follow redirects of shortened URLs to reveal the real ones.

This analyzer comes in only one flavor.

No configuration is required. It can be used out of the box.

Warning: using this analyzer without extra caution might lead to unexpected consequences. For example, if the URL you are seeking to unshorten is an attacker-controlled one, you may end up leaving undesired traces in the threat actor’s infrastructure logs. The TLP values Cortex allows you to configure to prevent the use of an analyzer if the TLP associated with an observable is above the authorized level won’t be of much help since Unshortenlink have to access the shortened URL. Please do not activate this analyzer unless you (and your fellow analysts) know what they are doing.

Pasted image at 2018_06_05 09_07 PM.png

Screen Shot 2018-06-05 at 21.05.45.png
TheHive: Unshortenlink — Short and Long Report Samples

Additional Enhancements

  • YARA analyzer had a bug which was fixed in version 1.9.7 of the Cortex-analyzers repository. If you install 1.10, you’ll obviously benefit from the fix 😉
  • A permission problem that prevented using the Cuckoo Sandbox analyzer was corrected (thanks Felix Bauer!)

Support

Something does not work as expected? No worries, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

CorrectionJune 6, 2018
An earlier version of this post mentioned that GreyNoise needs an API key. That’s only necessary if a certain level of requests are made. Also, to configure analyzers, you need to be orgAdmin.
