Cortex4py 2 is Out!

Cortex, a free, open source software allows security analysts and threat hunters to analyze and enrich observables (IP addresses, hashes, domains, …) collected in the course of an investigation or received from third parties, for example through MISP, the de facto standard for threat sharing.

On March 29, 2018, we released Cortex 2, a major improvement over the previous version which brought, among other cool features, authentication, caching, multi-tenancy (RBAC) and rate limiting. Instead of deploying several Cortex 1 instances behind reverse proxies which would implement authentification, administrators can deploy a single Cortex 2, create multiple organizations and serve the needs of various information security populations while enjoying extra features.

On May 31, 2018, we published a brand new API guide so that developers can take advantage of the powerful REST API of the product. Sadly, Cortex4py, the FOSS Python library we provide to interact with the API was not compatible with Cortex 2. Until today.

Thanks to the hard work of our dear Nabil Adouani, we are happy to announce the immediate availability of Cortex4py 2.0.0, a complete rewrite of the library in Python 3. Cortex4py 2.0.0 is fully compatible with Cortex 2. However, it doesn’t work with Cortex 1.

While TheHive, the highly popular free and open source Security Incident Response Platform (SIRP) we develop has native support for many Cortex 2 instances, Python developers can leverage Cortex4py to interact with Cortex 2, manage organizations, users, analyzer configurations and analyze observables at scale from alternative SIRPs, SIEMs or custom scripts thanks to the 83 analyzers Cortex 2 has as of June 18, 2018.

Screen Shot 2018-06-18 at 20.01.27.png
Cortex 2: there is more than one way to interact with it

Use It

To install Cortex4py, use PIP3:

$ sudo -H pip3 install cortex4py

If you are using Python on a Windows operating system, please forgo the sudo command.

Usage

Cortex4py 2 comes with a usage guide which includes many examples. For example, if you want to fetch the last 10 successful jobs that have been executed against domain names and display the result summaries of those 10 jobs you could write something like:

Screen Shot 2018-06-18 at 19.58.45.png
Sample Python3 code to retrieve Cortex analyzer results

Migrating from Cortex4py 1

If you have already written scripts using Cortex4py 1.x (for Cortex 1), we tried to keep the already available methods. However, we recommend you adapt your code to leverage the new Cortex4py 2 classes and methods as soon as feasible. Moreover, the existing scripts must be updated to support authentication if you intend to use them with Cortex 2. Please read the Cortex4py 2 usage guide for more information.

Support

Cortex 2.0.0 is brand new software. As such, it might contain bugs and limitations. If you find any or encounter problems, please ask on our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

There are More than 80 Ways to Analyze Them

TheHive Project Chefs are pleased to announce the immediate availability of Cortex-Analyzers 1.10.1. To install this new release and benefit from 11 new analyzers and some fixes:

$ cd /path/to/Cortex-Analyzers
$ sudo git pull
$ for I in analyzers/*/requirements.txt; do sudo -H pip2 install -r $I; done && \
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -r $I || true; done

After running these commands, read the Analyzer Requirements Guide,  log into the Cortex 2 Web UI as an orgAdmin, click on the Refresh Analyzers button in the Cortex Web UI, configure the new analyzers and enjoy!

Cortex: click on Refresh Analyzers after updating to the latest Cortex-analyzers version

If you are using TheHive, get the last version of  the report templates and import them into TheHive.

New Analyzers

We have added 11 analyzers to this release, bringing the total to 53 (83 if we count all the flavors):

  1. Crtsh: contributed by crackytsi
  2. Cybercrime-Tracker: contributed by ph34tur3
  3. FireEye iSIGHT: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  4. GreyNoise: contributed by Nclose
  5. IBM X-Force: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  6. Malwares: contributed by Davide Arcuri and Andrea Garavaglia from LDO-CERT
  7. MnemonicPDNS: contributed by Michael Stensrud from the Nordic Financial CERT
  8. StaxxSearch: contributed by Robert Nixon
  9. StopForumSpam: contributed by Marc-André Doll from STARC (by EXAPROBE)
  10. ThreatCrowd: contributed by Rémi Allain from Cyberprotect
  11. Unshortenlink: contributed by Rémi Pointel from CERT-BDF

Crtsh

Get Crt.sh certificate transparency lists associated with a domain name. Crt.sh is an online service operated by the Comodo Certificate Authority.

The analyzer comes in only one flavor. No configuration is required. It can be used out of the box.

Screen Shot 2018-06-05 at 16.46.22.png

Screen Shot 2018-06-05 at 16.46.31.png

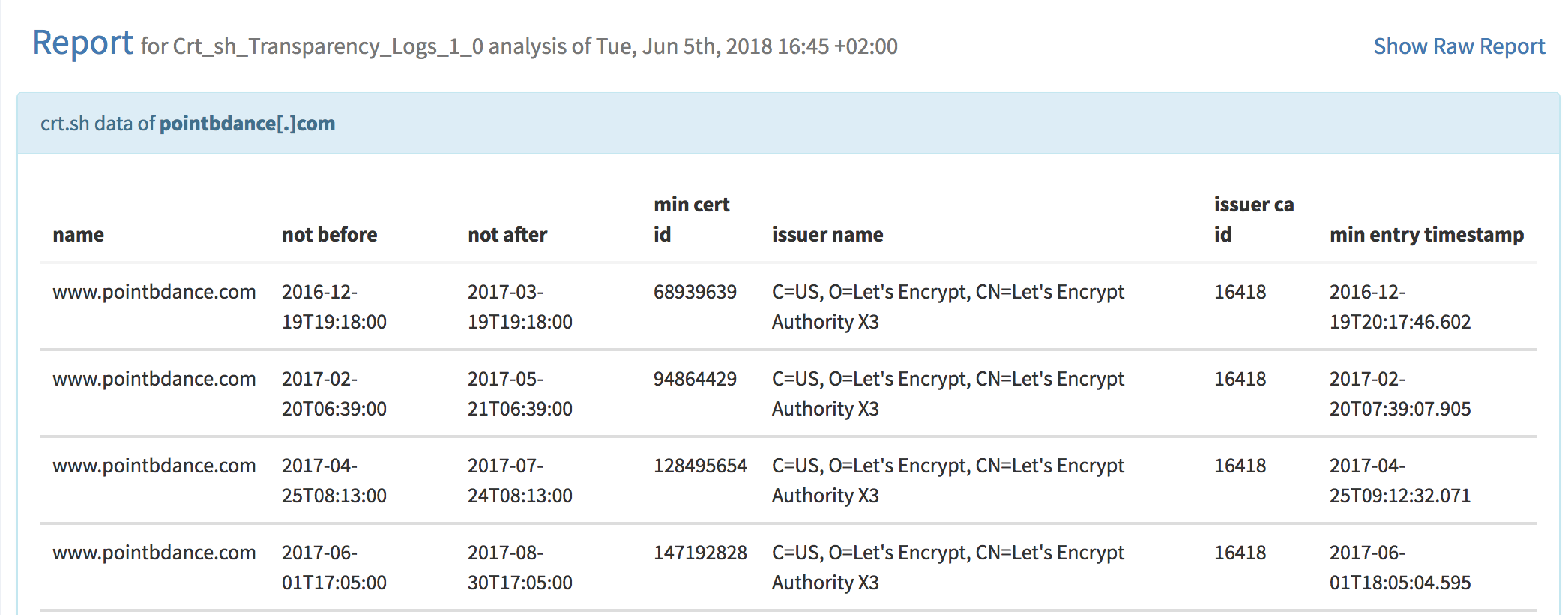

TheHive: Crtsh — Short and Long Report Samples

Cybercrime-Tracker

Use the Cybercrime-tracker.net service to assess whether an IP address, URL, domain, or FQDN has a C2 (Command & Control) entry in its database.

This analyzer comes in only one flavor. No configuration is required. It can be used out of the box.

Screenshot from 2018-06-05 14-43-54.png

Screenshot from 2018-06-05 14-43-37.png

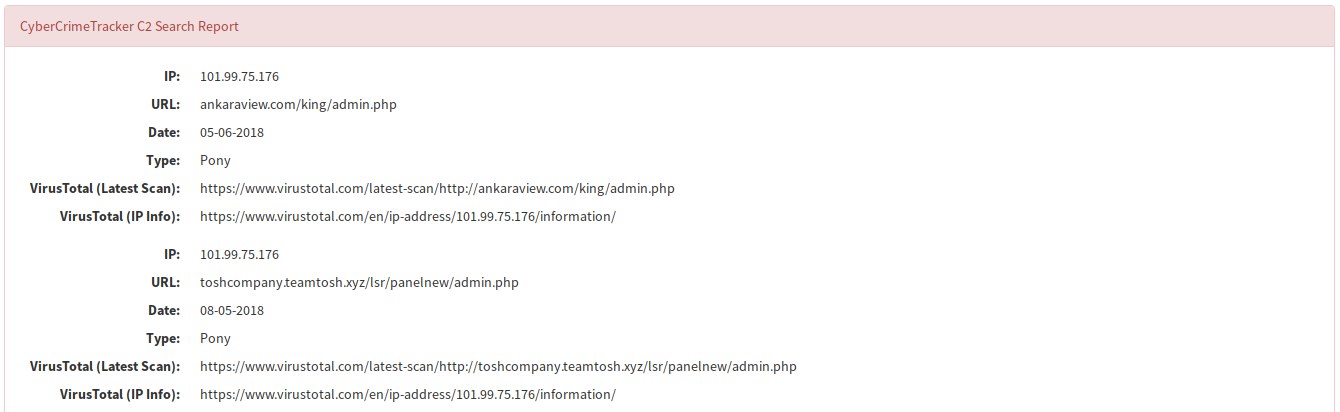

TheHive: CyberCrime-Tracker — Short and Long Report Samples

FireEye iSIGHT

Leverage FireEye iSIGHT Threat Intelligence to qualify domains, IP addresses, hashes and URLs.

This analyzer comes in only one flavor. You need a valid FireEye iSIGHT Threat Intelligence subscription to use the analyzer. Retrieve the API key associated with your account and provide it as a value to the key parameter. Obtain the password associated with the API key and provide it as a value to the pwd parameter.

TheHive: FireEye iSIGHT — Long Report Sample (courtesy of Andrea Garavaglia)

GreyNoise

Determine whether an IP has known scanning activity using GreyNoise.

This analyzer comes in only one flavor. It can be used out of the box without configuration. However, if you make many requests, you need to obtain an API key. Please contact GreyNoise to ask for one. Once you get the API key, provide it as the value of the key parameter.

Screenshot from 2018-06-05 14-48-02.png

Screenshot from 2018-06-05 14-47-42.png
TheHive: GreyNoise — Short and Long Report Samples

IBM X-Force

Query domains, IPs, hashes and URLs against IBM X-Force Threat Intelligence sharing platform.

This analyzer comes in only one flavor. Access to IBM X-Force Threat Exchange requires an IBM ID. Once you have access to the service, supply the URL of the service as value for the url parameter, the API key associated with your account as value for the key parameter and the associated password as the value of the pwd parameter.

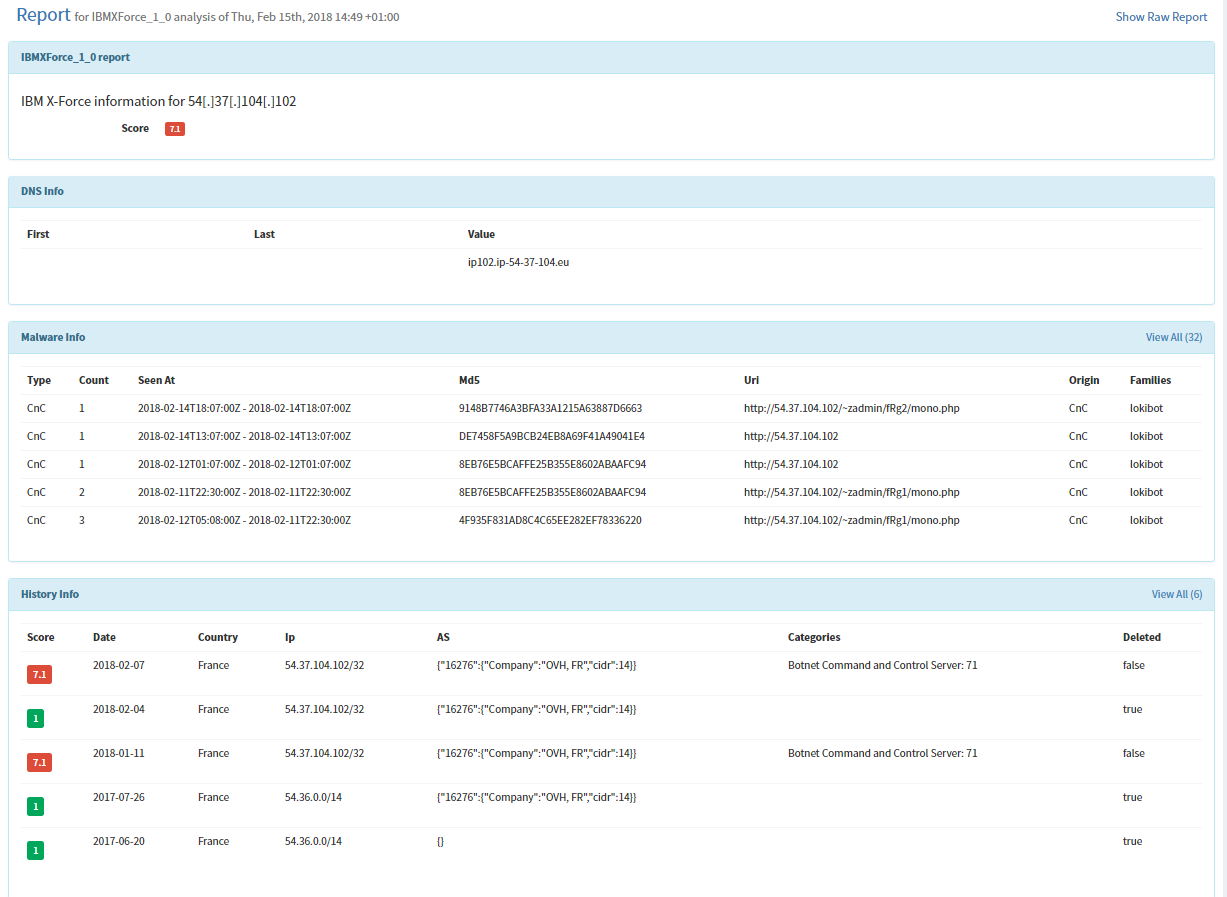

TheHive: IBM X-Force — Long Report Sample (courtesy of Andrea Garavaglia)

Malwares

Query Malwares.com and get reports on files, hashes, domain names and IP addresses.

The analyzer comes in two flavors:
– Malwares_pDNS_GetReport: get the latest Malwares report for a file,
hash, domain or an IP address.
– Malwares_pDNS_Scan: scan a file or URL.

You need to sign up for a Malwares.com account. An API key to use the service’s API should be associated with your account. Supply it as the value of the key parameter.

Screen Shot 2018-06-05 at 16.56.38.png

Screen Shot 2018-06-05 at 16.56.57.png

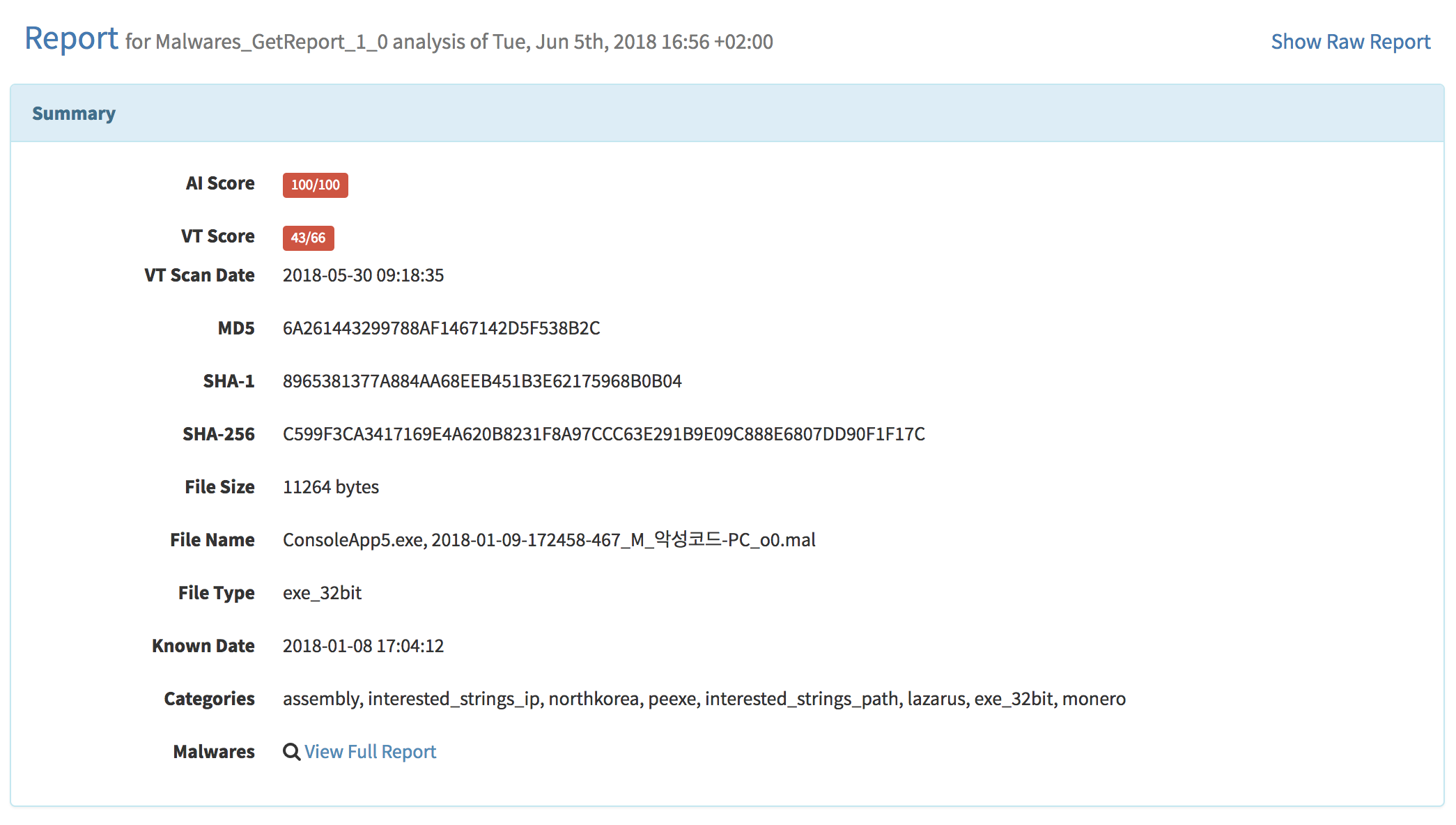

TheHive: Malwares_GetReport — Short and Long Report Samples

MnemonicPDNS

Query IP addresses and domain names against Mnemonic Passive DNS service.

This analyzer comes in two flavors:

  • Mnemonic_pDNS_Public: query Mnemonic’s public service.
  • Mnemonic_pDNS_Closed: query Mnemonic’s closed service.

When using the public service, the analyzer can be used out of the box with no further configuration. When using the closed service, you need to contact Mnemonic to get an API key which you’ll need to supply as the value of the key parameter.

Screenshot from 2018-06-05 14-46-40.png

Screenshot from 2018-06-05 14-46-19.png

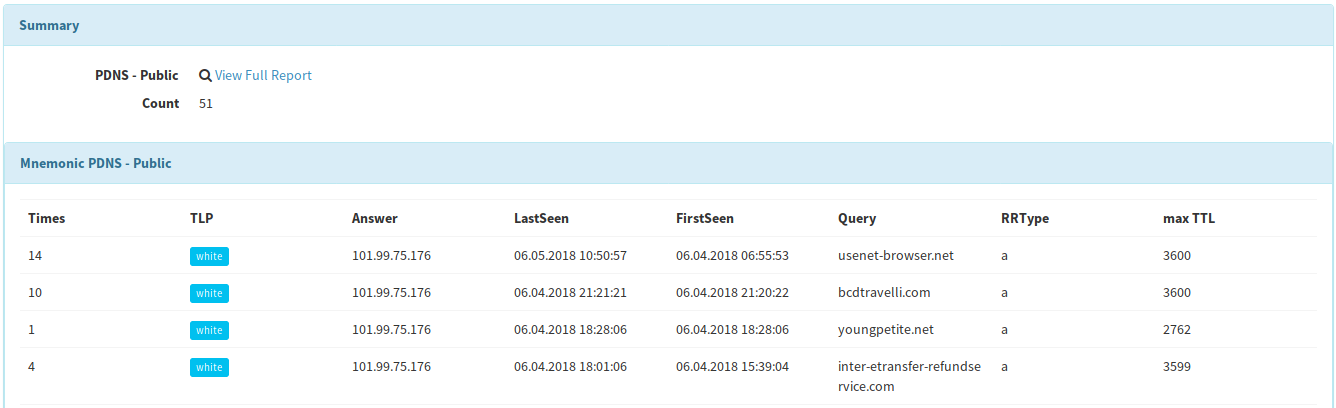

TheHive: Mnemonic PDNS — Short and Long Report Samples

StaxxSearch

Fetch observable details from an Anomali STAXX instance.

This analyzer comes in only one flavor. You need to install an Anomali STAXX instance or to have access to one to use the analyzer. Supply the following parameters to the analyzer in order to use it:

  • auth_url: URL of the authentication endpoint.
  • query_url: URL of the intelligence endpoint.
  • username: the STAXX user name.
  • password: the STAXX password.
  • cert_check: boolean indicating whether the certificate of the endpoint must be checked or not.
  • cert_path: path to the CA on the system to validate the endpoint’s certificate if cert_check is true.

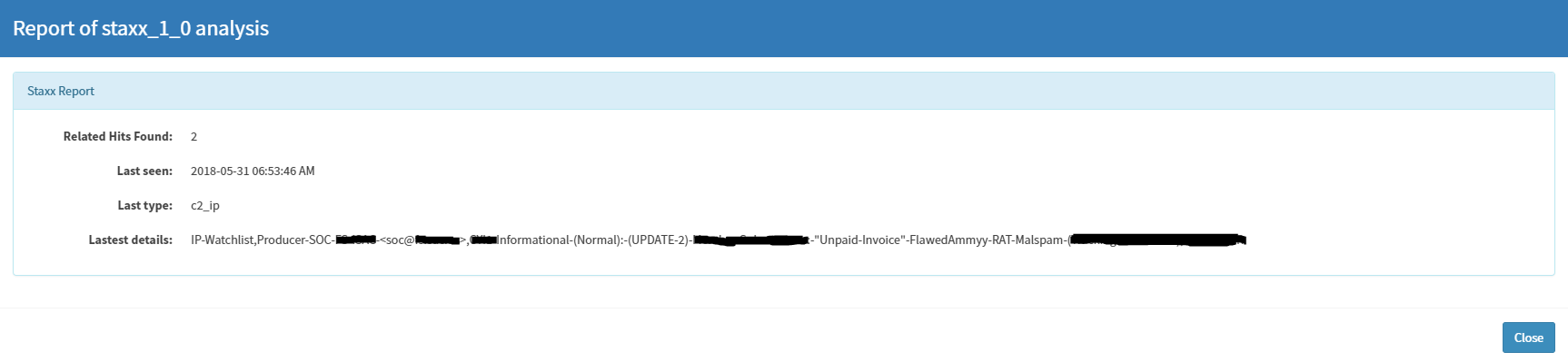

TheHive: StaxxSearch — Short and Long Report Samples (courtesy of Robert Nixon)

StopForumSpam

Query StopForumSpam to check if an IP or email address is a known spammer.

You need to define the thresholds above which the analyzed observable should be marked as suspicious or malicious.

Screen Shot 2018-06-05 at 18.32.08.png

Screen Shot 2018-06-05 at 18.32.21.png
TheHive: StopForumSpam — Short and Long Report Samples

ThreatCrowd

Look up domains, mail and IP addresses on [ThreatCrowd(https://www.threatcrowd.org/), a service powered by AlienVault.

This analyzer comes in only one flavor. No configuration is needed. It can be used out of the box.

Screenshot from 2018-06-05 14-45-29.png

Screenshot from 2018-06-05 14-45-11.png
TheHive: Threatcrowd — Short and Long Report Samples

Unshortenlink

Follow redirects of shortened URLs to reveal the real ones.

This analyzer comes in only one flavor.

No configuration is required. It can be used out of the box.

Warning: using this analyzer without extra caution might lead to unexpected consequences. For example, if the URL you are seeking to unshorten is an attacker-controlled one, you may end up leaving undesired traces in the threat actor’s infrastructure logs. The TLP values Cortex allows you to configure to prevent the use of an analyzer if the TLP associated with an observable is above the authorized level won’t be of much help since Unshortenlink have to access the shortened URL. Please do not activate this analyzer unless you (and your fellow analysts) know what they are doing.

Pasted image at 2018_06_05 09_07 PM.png

Screen Shot 2018-06-05 at 21.05.45.png
TheHive: Unshortenlink — Short and Long Report Samples

Additional Enhancements

  • YARA analyzer had a bug which was fixed in version 1.9.7 of the Cortex-analyzers repository. If you install 1.10, you’ll obviously benefit from the fix 😉
  • A permission problem that prevented using the Cuckoo Sandbox analyzer was corrected (thanks Felix Bauer!)

Support

Something does not work as expected? No worries, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

CorrectionJune 6, 2018
An earlier version of this post mentioned that GreyNoise needs an API key. That’s only necessary if a certain level of requests are made. Also, to configure analyzers, you need to be orgAdmin.

Cerana 0.9 and Cortex 2.0.4 are Out!

We are proud to announce the immediate availability of Cerana 0.9 (TheHive 3.0.9) and Cortex 2.0.4. These hotfix releases address a number of issues and we encourage you to update your current installation at your earliest opportunity. For your comfort and sanity. Seriously.

We also took this opportunity to update Cortex analyzers to fix issues with CIRCL Passive SSL, Hybrid Analysis, and the Joe Sandbox URL Analysis template. Moreover, we have updated the cortexutils library to set the taxonomy level to info if it is invalid. To upgrade cortexutils​ to 1.2.4:

sudo pip install -U cortexutils && sudo pip3 install -U cortexutils

To update your Cortex analyzers:

cd /path/to/Cortex-analyzers && git pull

Note: the Bluecoat analyzer was removed since it does not comply with the updated Terms of Service of Symantec Web Pulse SiteReview. Symantec does no longer permit programmatic querying of the service.

Fixes in Cerana 0.9

  • #527: display long reports when the analyst clicks on the corresponding short reports. Meh!
  • #541: make the drop-down menu for case templates scroll when there is a truckload of them.
  • #452: prevent WSAPI failure.
  • #531: fix naming inconsistencies in the Live Stream.
  • #530: correct an error when trying to analyze a filename using the Hybrid Analysis analyzer.
  • #543: generate an error if unable to contact Cortex.
  • #518: merge observable sightings when merging cases.
  • #535: fix the tag color of the PhishTank analyzer which was transparent under certain conditions.

Fixes in Cortex 2.0.4

  • #89: let a read,analyze user change or display their API key.
  • #91: sort analyzers by name.
  • #92: redirect users to the index page when they click on the Cortex logo.
  • #93: under the Organization > Configurations page, the UI displays wrong green checkmarks for empty configurations.
  • #94: orgadmin users are not able to update their organization’s users after the users are created. The UI doesn’t display any error message.
  • #95: avoid ‘lax programming’, Nabil style😜, and strictly filter the list of analyzers in the Run dialog.
  • #90: fix Python dependency errors in docker.

Support

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

CorrectionApril 14, 2018
An earlier version of this post did not mention that the Bluecoat analyzer was removed in the latest Cortex Analyzers repository release.

Cortex 2.0.3 Released and Analyzer Updates

There’s a new version of your ultimate observable analysis engine in town : Cortex 2.0.3 is out!

Cortex 2.0.3 contains a few important enhancements over its predecessor and fixes a number bugs as described in the full changelog summarised below. So get it while it’s still hot out of the digital oven and let us know how tasty it is.

analyzeallthethings
Source : Quickmeme.com

Implemented Enhancements

  • #81: reflect proxy changes in the global configuration at the analyzer level
  • #82: display invalid analyzers and let orgadmins delete them
  • #85: allow orgadmins to override the default global report cache.job period per analyzer through the Web UI
  • #86: allow a job to run with arbitrary parameters

Fixed Bugs

  • #75: a version upgrade of an analyzer makes all analyzers invisible in TheHive
  • #80: fix the analyzer configuration dialog to allow orgadmins to override the auto artifact extraction at the analyzer level
  • #83: hit Nabil on the head pretty hard until the analyzer refresh UI button works (well now it does so you can stop hitting poor Nabil’s head).

Analyzer Updates

We took the opportunity of a new release to make a few updates to the public analyzers. Cortex-Analyzers 1.9.3 contains the following changes:

  • Remove the Bluecoat analyzer to comply with the new ‘no scrapping’ ToS imposed by Symantec
  • Fix the default configuration of the Cymon Check IP analyzer
  • Fix the View all VT long template
  • Make the MISP Warning Lists Analyzer ignore case sensitivity when searching for hashes
  • Restrict the Abuse Finder and FileInfo analyzer dependencies to Python 2.7

You can read the full changelog if you like but if you want to enjoy the goods right away, git pull is your friend.

Support

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.



Cortex 2, TheHive and a Whole Slew of Updates

After announcing Cortex 2.0.0 and TheHive 3.0.7, the first version of your favorite SIRP that is (supposedly) compatible with the brand-new version of Cortex, last week, we thought it was time to relax and enjoy the upcoming, long Easter weekend, the sunny sky of Paris (if you can pierce the veil of the Forever Grey Cloud™ that is hanging over the city of lights), and great jazz music. Heck, I even tweeted about it … only to be proven wrong by Life (and Murphy).

We literally field tested Cortex 2 for 3 weeks, we squashed bugs here and there, until almost the very last minute before the release. And yet, our QA needs to be improved by leaps and bounds as we had to release Cortex 2.0.1 one day after unveiling 2.0.0 to correct some additional bugs. And then some members of the core team and of our growing user community took it for a spin. And all hell broke lose. Well, almost 🙂

good_code
Source: XKCD

Session collisions (when TheHive and Cortex 2 are used on the same machine), analyzer malfunctions, connectivity problems … issues that were not identified during the testing phase, even in a production environment, where everything worked as expected. And we call this ‘Computer Science’. Right, right…

So we worked hard, took out our Code Hammer (it’s like Thor’s but cyber) and blasted away all the bugs that we found out or that were reported to us (arigato gozaimasu!) and we are happy to announce the immediate availability of Cortex 2.0.2, TheHive 3.0.8, Cortexutils 1.2.3 and Cortex-Analyzers 1.9.2.

TL;DR Install or upgrade Cortex 2.0.2, update Cortexutils, git pull the Cortex-analyzers repo to get the latest version of the repository, upgrade to TheHive 3.0.8, follow the Quick Start Guide and have a drink.

If you have time (which is admittedly quite scarce nowadays), please read on the changelogs:

What’s Next?

As stated in the previous post, we will release a new version of Cortex4py in order to make it compatible with Cortex 2, continue the work we started with our MISP Project friends to support MISP attribute enrichment through Cortex 2 (MISP currently only supports enrichment using Cortex 1), and perform a long-overdue overhaul of our documentation. We will also release a brand new version of TheHive4py.

Last but not least, we’ll take a hard look at ourselves and our QA. You expect us from us high quality and we hold ourselves to high standards. And we will deliver.

Support

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

Unveiling Cortex 2

TheHive Project’s Master Chefs are extremely happy to share, for free their latest recipe with the Cyber Threat Intelligence, Digital Forensics and Incident Response communities: Cortex 2.

As its predecessor, Cortex 2 is published under an AGPL v3 license and it introduces many important features that we brushed upon in a Dec 2017 post.

Screen Shot 2017-12-15 at 17.16.06
Cortex 2 — Architecture

Update: Cortex 2.0.1 was released since this post went live. It corrects a few bugs we uncovered in 2.0.0 as described in the changelog. Please install Cortex 2.0.1 instead of 2.0.0.

Authentication

Cortex 2 supports all the authentication methods that TheHive supports: LDAP, Active Directory, local accounts, API Keys, and X.509 SSO.

To connect your favorite Security Incident Response Platform with Cortex 2, you will need to update TheHive to Cerana 0.7 (TheHive 3.0.7) which was released today as well. This version fixes a regression pertaining to case templates introduced by Cerana 0.6 and is the first version to fully support Cortex 2’s API changes and authentication.

To make TheHive 3.0.7 analyze observables at scale through Cortex 2, you have to create an account on Cortex 2 with the read and analyze roles (see the next section) and generate the associated API Key. Next, feed the key in TheHive’s /etc/thehive/application.conf as described in the documentation et voilà !

TheHive 3.0.7 remains compatible with Cortex 1 and you can connect it to a mixed set of Cortex 1 and/or Cortex 2 instances with no issues.

Organizations, Analyzers and Rate Limiting

Cortex 2 introduces multi-tenancy through organizations and each organization can have its own set of users, with different roles, its own set of analyzers and, if necessary, rate limits that will prevent analysts from burning quotas.

Multi-tenancy has several interesting use cases. For instance, if you are the CSIRT or CERT of a large multinational organization with several regional teams, you can create an organization for each region within your constituency and enable the analyzers that they may need to use. Let’s assume that you bought a VirusTotal subscription that limits you to 5000 requests per month. You can configure the corresponding analyzers to give each region a fair share of that quota and keeping some requests for your own use.

In case you are a commercial CSIRT or an MSSP, you could do the same for your customers by installing only one Cortex 2 instance and creating an organization for each customer.

Screen Shot 2018-03-29 at 16.27.05.png
Configure an analyzer graphically and impose rate limits if necessary

User Roles

By default, Cortex 2 is shipped with the default cortex organization which sole purpose is to create other ones and manage the users within each organization and their associated powers. The cortex organization hosts all users with the superAdmin role and it cannot be used to configure or run analyzers.

As described in the new Quick Start Guide, after installing Cortex 2, updating its database and creating the first user who will have super admin powers, you’ll have to create your first organization and at least one user within that organization with orgAdmin rights.

Screen Shot 2018-03-29 at 16.33.02
Create an organization

You can then log out and log in using the orgAdmin account to create further users within that organization, enable and configure analyzers etc. Please note that no analyzer is enabled by default and you need at least v 1.9.0 of the cortex-analyzers repository. To update your set of analyzers to 1.9.0, please run git pull.

Screen Shot 2018-03-29 at 16.28.47
Manage users within an organization

Besides the superAdmin and orgAdmin roles, Cortex 2 introduces the read role which allows users to access analyzer reports and read them but not execute analyzers. For that, users need the analyze role (which implies the read role). orgAdmin users can also run analyzers. superAdmin users are limited to the default cortex organization. While they can create organizations and manage users within them, they cannot access analyzer configurations such as confidential API keys or job reports.

Screen Shot 2018-03-29 at 16.31.28
Job reports

Report Persistence and Caching

Cortex 2 relies on Elasticsearch 5.x to store many configuration items but also all the analyzer reports that have been generated. Unlike its predecessor, you won’t lose your existing reports should you need to restart the service or the host it is running on.

Cortex 2 also introduces report caching. By default the cache.job parameter is set to 10 minutes in /etc/cortex/application.conf. That means that if an analysis on a given observable with a defined TLP is requested and that a report has been previously generated in the last 10 minutes, Cortex 2 will serve that report instead of running a new analysis. This feature can help prevent soliciting analyzers, particularly those which require a subscription or have quotas, when there is no need to do so. Please note that this parameter is global to all the analyzers and all the organizations that are configured in the Cortex 2 instance. We do have plans to make it more granular in future versions.

Migrating from Cortex 1

If you are migrating from Cortex 1.x, we recommend that you:

  1. Save the configuration of your analyzers (which ones are enabled and what their configuration items are, such as users/passwords or API keys).
  2. Install Cortex 2.
  3. Edit /etc/cortex/application.conf to add the secret key as shown in Step 1 of the Quick Start Guide and point Cortex to the location of the analyzers.
  4. Follow the remaining steps of the Quick Start Guide to enable the analyzers you need and reinject their configuration.

What’s Next?

In the upcoming weeks, we will release a new version of Cortex4py in order to make it compatible with Cortex 2, continue the work we started with our MISP Project friends to support MISP attribute enrichment through Cortex 2 (MISP currently only supports enrichment using Cortex 1), and perform a long-overdue overhaul of our documentation.

Feeling Generous? Donate!

As you know, we are a FOSS project and donations are always welcome to make our products even better for the community.

All donations go to Creative Source, the non-profit organization we have created, and we will use them to improve TheHive, Cortex & Hippocampe but also to develop (even better) integrations with other FOSS solutions such as MISP.

So if you are feeling generous, please contact us at support@thehive-project.org.

Creative Source can also provide so-called professional, entreprise-grade support, help integrating the products, train your analysts before they drain or assist you in specific areas such as developing in-house analyzers for Cortex.

Support

Something does not work as expected? You have troubles installing or upgrading? No worries, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

Correction: March 30, 2018
Instructions on how to update the cortex-analyzers have been added. Also, Cortex 2.0.1 was released to correct a few bugs in the previous version since this post went live.

Ali Cortex and the 40 Analyzers

Two months ago, TheHive Chefs announced that Cortex passed the 30 analyzers mark as they added HybridAnalysis, EmergingThreats and Shodan, all three contributed by our continuously growing user community.

It’s 2018 already and to wish you a very happy new DFIR year, Nils and Jérôme got out of their way and reviewed many outstanding pull requests for new analyzers and fixed several bugs. Kudos bees!

Snapseed
© Saâd Kadhi

The latest release of Cortex-Analyzers, v 1.8.0, contains not one, not two, not even three but ten new analyzers! Isn’t that good omen for a fresh new year fighting cybercrime?

The ten new analyzers, described below, are:

  1. Bluecoat: contributed by our longtime friends from CERT La Poste.
  2. C1fApp: submitted by Dimitris Lambrou.
  3. Censys.io: developed by Nils Kuhnert, now a full member of TheHive Project, on behalf of CERT-Bund.
  4. MISP WarningLists: Nils strikes again (watch out Jérôme! the youngster is gonna leave you way behind ;).
  5. Onyphe: contributed by Pierre Baudry and Adrien Barchapt. It comes in five different flavors.
  6. PayloadSecurity: submitted by Emmanuel Torquato. The analyzer comes in two flavors.
  7. Robtex: added by… Nils again! It has three flavors.
  8. SinkDB: guess who developed that one? Wow, impressive! How did you figure it out? Yes, Nils!
  9. Tor Blutmagie: contributed by Marc-André Doll.
  10. Tor Project: also contributed by Marc-André Doll.

We would like to wholeheartedly thank all the individuals and teams listed above for their invaluable contributions. So a big merci for your work!

Bluecoat

The Bluecoat analyzer queries the Symantec – previously known as Bluecoat – WebPulse site review API for the currently assigned site category of URLs or domains. The analyzer needs no further configuration. When executed through TheHive, the analyzer produces short and long reports as shown below:

firefox_2018-01-10_11-02-03

Bluecoat Analyzer
TheHive: Bluecoat 1.0 Analyzer – Short and Long Report Samples

C1fApp

The C1fApp analyzer queries the C1fApp service, an Open Source threat feed aggregation application, using the API for IP addresses, domains and URL.

Before using the analyzer, you need to create an account on the C1fApp website and get the associated API key which you’ll need to provide as a value for the key parameter of the analyzer config section of /etc/cortex/application.conf as shown below. Once you’ve done so, you’ll need to restart Cortex.

 C1fApp {
     service="query"
     key="<insert API key here>"
     url="https://www.c1fapp.com/cifapp/api/"
 }

When launched using TheHive, the analyzer produces short and long reports such as the following:


TheHive: C1fApp 1.0 Analyzer – Short and Long Report Samples

Censys.io

Censys.io continually monitors every reachable server and device on the Internet, so you can search for them and analyze them in real time. Using the corresponding analyzer, information about a website certificate can be obtained using the associated IP, domain or certificate hash.

In order to use this analyzer, an account at censys.io has to be registered and the API ID and secret need to be added to the Cortex configuration file:

Censys {
    uid="<Your ID here>"
    key="<Your secret here>"
}

Once done, you’ll have to restart Cortex. When ran from TheHive, the analyzer produces short and long reports such as the following:

Censys Short

Censys.io Analyzer
TheHive: Censys 1.0 Analyzer – Short and Long Report Samples

Details about the ports can be obtained with a click on the specific button.

MISP WarningLists

In order to detect false positives soon enough in the analysis process, our good friends at the MISP Project published their so called warning lists which contain lists of well-known services or indicators.

This analyzer queries observables against the MISP warning lists. Observables can be an IP address, a hash, a domain, a FQDN or a URL.

To iterate through all the warning lists, the repository itself must be available on the Cortex instance:

git clone https://github.com/MISP/misp-warninglists

We highly recommend you create a cron entry or use a similar mechanism to keep the lists fresh. While the default path for the lists is the misp-warninglists subdirectory it can be adjusted in the configuration file:

 MISPWarningLists {
     path = "/path/to/misp-warninglists/repository" # Default: "misp-warninglists"
 }

When called from TheHive, the analyzer produces short and long reports as shown below:

firefox_2018-01-10_11-01-46

MISP Warninglists Analyzer
TheHive: MISP WarningLists 1.0 Analyzer – Short and Long Report Samples

As you can see, The MISP WarningLists analyzer checks if the repository is up-to-date 😉

Onyphe

The Onyphe analyzer leverages Onyphe’s API to query the service, which provides data about the IP address space and the publicly available information in a single, handy location.

The service comes in five flavors:

  • Onyphe_Forward: retrieves forward DNS lookup information we have for the given IPv4/IPv6 address with history of changes.
  • Onyphe_Geolocate: retrieves geolocation information for the given IPv4/IPv6 address.
  • Onyphe_Ports: retrieves synscan information we have for the given IPv4/IPv6 address with history of changes.
  • Onyphe_Reverse: retrieves reverse DNS lookup information we have for the given IPv4/IPv6 address with history of changes.
  • Onyphe_Threats: retrieves Onyphe threats information on anIPv4/IPv6 address with associated history.

To use the analyzer, you need to create an account on the Onyphe website. Provide the API key associated with your account as a value for the key parameter and add the lines below to the config section of /etc/cortex/application.conf then restart the cortex service.

Onyphe {
    key = "<insert API key here>"
}

When ran from TheHive, the analyzer produces short and long reports such as the following:


TheHive: Onyphe 1.0 Analyzer – Short and Long Report Samples

PayloadSecurity

The PayloadSecurity analyzer let you submit observables to a on-premises PayloadSecurity instance. To use it, you need to create an account on the PayloadSecurity service. Provide the API/secret pair as  values for the key and secretparameters, collect the URL and environmentid of the service,  and add the lines below to the ​​config section of  /etc/cortex/application.conf. Then restart the cortex service.

PayloadSecurity {
    url = "<insert URL here>"
    key="<insert API key here>"
    secret="<insert secret here>"
    environmentid="<insert environmentid here>"
    verifyssl=True
}

When launched through TheHive, the analyzer produces short and long reports such as the following:


TheHive: PayloadSecurity 1.0 Analyzer – Short and Long Report Samples

Robtex

When collecting data about IPs, domains and FQDNs, Robtex can be a good source of information. According to their statistics, they logged over 20 billion DNS resource records. The corresponding analyzer comes in three flavors:

  • Robtex_Forward_PDNS_Query: checks domains/FQDNs using the Robtex Passive DNS API
  • Robtex_IP_Query: checks IPs using the Robtex IP API
  • Robtex_Reverse_PDNS_Query: checks IPs using the Robtex reverse Passive DNS API

The analyzer uses the free Robtex API which needs no subsequent configuration. However, the free API limits the rate and amount of returned data.

When executed using TheHive, the analyzer produces short and long reports such as the following:

Robtex Short

Robtex Analyzer
TheHive: Robtex 1.0 Analyzer – Short and Long Report Samples

SinkDB

SinkDB is a private service provided by abuse.ch which collects sinkholed IPs. Access to the service is allowed to trusted partners only. If you think you qualify, you can request an access using the form available on the SinkDB website. This is most likely only granted to certain CSIRTs and CERTs and not to individuals.

Provide the API key associated with your account as a value for the key parameter and add the lines below to the config section of /etc/cortex/application.conf then restart the cortex service.

SinkDB {
    key="<insert API key here>"
}

When ran from TheHive, the analyzer produces short and long reports such as the following:

SinkDB Short True

SinkDB Long
TheHive: SinkDB 1.0 Analyzer Short and Long Report Samples

Tor Blutmagie

Tor Blutmagie analyzer extracts data from torstatus.blutmagie.de  and checks if an observable is linked to a Tor node. The observable can be an IP address, a FQDN or a domain.

In order to check if an IP, domain or FQDN is a Tor exit node, this analyzer queries the Tor status service at Blutmagie.de. The analyzer uses a caching mechanism in order to save some time when doing multiple queries, so the configuration includes parameters for the cache directory and the caching duration.

Provide the lines below to the config section of /etc/cortex/application.conf then restart the cortex service.

TorBlutmagie {
    cache {
        duration=3600
        root=/tmp/cortex/tor_project
    }
}

When ran from TheHive, the analyzer produces short and long reports such as the following:

firefox_2018-01-10_11-01-55

Tor Blutmagie Analyzer

Tor Blutmagie Analyzer (2)
TheHive: Tor Blutmagie 1.0 Analyzer – Short and Long Report Samples

Tor Project

Tor Project analyzer has also been contributed by Marc-André Doll. As the above analyzer, this one checks if an observable is a Tor exit node. This time, however, the source of information is the official Tor network status which can be queried for IP addresses only.

The accepts another parameter, ttl, which is the threshold in seconds for exit nodes before they get discarded. Provide the lines below to the config section of /etc/cortex/application.conf then restart the cortex service.

TorProject {
    cache {
        duration=3600
        root=/tmp/cortex/tor_project
        ttl=86400
    }
}

When ran from TheHive, the analyzer produces short and long reports such as the following:

TorProject Short

Tor Project Analyzer
TheHive: Tor Project 1.0 Analyzer – Short and Long Report Samples

Additional Fixes and Improvements

  • #141: Joe Sandbox analyzer now supports API version 2
  • #158: Fix mode when creating FireHOL ipset directory
  • #162: Fix Snort alerts in Cuckoo analyzer
  • #149: Fix the VirusShare hash downloader

Please note that when we fixed the bug in the shell script of VirusShare analyzer, the original Python script was removed.

Update TheHive Report Templates

If you are using TheHive, get the last version of  the report templates and import them into TheHive.

Running Into Trouble?

Shall you encounter any difficulty, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

Correction: January 12, 2018
The post was updated to add the full name of the author of the PayloadSecurity analyzer.
