The Dockerization Will not be Televised

Do you know what the following set of commands achieve?

$ cd /opt/Cortex-Analyzers
$ sudo git pull
$ for I in $(find /opt/Cortex-Analyzers -name 'requirements.txt'); do sudo -H pip2 install -U -r $I; done \
&& for I in $(find /opt/Cortex-Analyzers -name 'requirements.txt'); do sudo -H pip3 install -U \
-r $I || true; done

The answer is obvious Doctor Watson, right? These highly readable commands (pun intended) allow you to update your Cortex analyzers and responders to the latest stable versions, downloading new ones in the process, going over all the Python 2 and Python 3 dependencies to install the missing ones and upgrade the old ones to make sure they work correctly. These operations take quite a long time and cause some headaches in the process (Hello, I have Python 3.X and this dependency is no longer required, or Hi, I have an old version of Python 2 and it seems I need this other dependency).

And if you are lucky enough to get it running smoothly, you are still not done as you need to log in to the Cortex UI as an organisation administrator (unlike TheHive, Cortex supports multi-tenancy), click on the Refresh analyzers button under Organization > Analyzers then go to Organization > Responders and click on Refresh responders.

So while the answer to the opening question might be simple, updating analyzers and responders is far from being straightforward, to say the least, even if we forget the ugly fact that both are stored in a repository “conveniently” named Cortex-Analyzers*:

thehive@thehive-training:/opt/Cortex-Analyzers$ ls -d a* r*
analyzers  responders

Unnecessary Complexity Must Die

Your lovely, hard-working bees hate unnecessary complexity. Our project’s front page blatantly states our mission to bring Security Incident Response to the masses. And we have to stand by our words even if TheHive and Cortex are free, open source solutions and we do not gain anything from them save for the huge satisfaction of helping our fellow incident handlers level the fight against cybercriminals & all kinds of other animals of the APT (Advanced Persistent Troll Threat) bestiary.

There is only one possible solution: simplify the installation and update process of the current, official 115 analyzers and responders we have as of this writing, the future ones and any private or unofficial ones written in other programming languages such as those developed in Go by Rosetelecom-CERT.

Docker all the Things!

Starting from Cortex 3.0, the next major release of your favourite analysis and active response engine, all analyzers and responders will be dockerized. It will no longer be necessary to install them along with their various dependencies. They will be dowloaded from our cortexengine Docker organisation. Sysadmins might also configure automatic updates.

As a side advantage of using Docker, analyzers, and responders will also be isolated from each other which gives more flexibility and possibilities.

© Steve Simson. This artwork and the title of this blog post are inspired by The Revolution will not be televised, a song from the late and great Gil Scott-Heron.

For those users who have private, custom analyzers and responders that they don’t want or can’t share with the community, several options will be available:

  • Continue managing their analyzers and responders in the same way as currently supported by Cortex 2 (i.e. launch them as processes, with no isolation whatsoever).
  • Dockerize them and store them locally on their Cortex instance.
  • Dockerize them and publish them on a Docker registry, either the official one or a private registry.

A Docker image of Cortex 3 will still be provided. It will contain a Docker engine to launch dockerized analyzers and responders using DIND (Docker in Docker).

It won’t be necessary to modify the code of the current, official analyzers and responders. A drone job will monitor the analyzer and responder repository and automatically build docker images when it detects changes.

The Cortex Web interface will be slightly modified to accommodate the whole process and allow adding in-house/private Certificate Authorities to allow Cortex to smoothly perform updates in those corporate environments where TLS/SSL inspection is enabled.

Nice Movie Trailer. When is it Coming to a Theatre near me?

We are working hard to get Cortex 3 out of the oven in Q1 (of this year, yes). We will reach out to you, dear reader, in due time, to help us test it and refine it before putting it on the digital shelf for free, as usual. We will provide a smooth migration path in order to move safely your current analyzers and responders and their configuration to Cortex 3.

So to paraphrase the late and great Gil Scott-Heron:

The dockerization will not be televised

The dockerization will not be televised

The dockerization will be live.

Since you are here

The success of TheHive and Cortex continue to grow, far more than we initially foresaw. As far as we know, there are about a hundred organisations of different sizes and locations using or testing them. And as the number of users grows, so does the number of features, professional service and support requests.

We have tried addressing these requests through Creative Source, a nonprofit organisation (NPO). All but one company trusted us enough to make a donation and get tailored services for its needs in return. Most of the others either did not reply to our proposals or explained that their procurement process does not accommodate working with NPOs.

Some members of our core team are actively working on alternative options to ensure not only the viability of TheHive and Cortex as FOSS products on the long run but the ability to provide professional training, support, and services without freaking out highly bureaucratic, think-in-the-box-but-never-outside procurement departments.

Stay tuned 🐝


(*) When the idea behind Cortex was born into our hive mind, we did not initially think about active response capabilities. So we naturally called the repository which was supposed to contain analyzers Cortex-Analyzers . When, at a later stage, we added responders, we put them in the same repository for obvious laziness pretences  ¯\_(ツ)_/¯.

Correction: February 15, 2019
Typographical errors have been corrected. Some rewording has been made for the sake of clarity.

UnshortenLink, SSRF and Cortex-Analyzers 1.15.2

We urge our fellow fighters of cybercrime and funny and not-so-funny animals-in-disguise, to update their Cortex analyzers to the latest 1.15.2 version which plugs a serious vulnerability in the Unshortenlink analyzer and fixes several bugs.

Unshortenlink Vulnerability

On Jan 24, Alexandre Basquin discovered a SSRF vulnerability in the Unshortenlink 1.0 analyzer. By exploiting it, an attacker which has access to a Cortex instance with an analyze role can scan the ports of localhost and possibly of all the hosts reachable by Cortex. This could be automated through Cortex4py by making repetitive calls to the API and thus scanning multiple ports & hosts. In essence, the attacker can perform reconnaissance thanks to Unshortenlink and gain knowledge on which ports are open and which aren’t.

Version 1.1 of Unshortenlink, included in Cortex-Analyzers 1.15.2, plugs this vulnerability by disabling submissions containing IPs & ports. Only URLs are now accepted.

Bug Fixes

Additionally, Cortex-Analyzers 1.15.2 corrects the following bugs:

  • #416: the Mailer responder now supports UTF-8 encoding.
  • #410: remove wrapping of the results produced by crt.sh as a list which ends up breaking the output of the report template. Contributed by Thomas Kastner.
  • #409: enum is not required for Python 3.4+ to make the MISP Search analyzer work.
  • #408: FileInfo’s Manalyze plugin did not work after Manalyze renamed plugin_btcaddress to plugin_cryptoaddress.
  • #406: fix a broken link in the Cymon_Check_IP report, submitted by Manabu Niseki.
  • #313: fix wrong file handling in OTXQuery.

How to Update your Analyzers?

To update your analyzers to version 1.15.2, please read the Updating section of the Cortex installation guide.

Since the version numbers of few analyzers have changed, you’ll need to connect as an orgadmin to Cortex to refresh the analyzer list, disabling old ones and enabling the new versions.

TheHive Report Templates

If you are using TheHive, you must import the new report templates in your instance as follows:

  • download the updated package
  • log in TheHive using an administrator account
  • go to Admin > Report templates menu
  • click on Import templates button and select the downloaded package

Wait a Minute! Where’s the Blog Post about 1.15.1?

Good catch! There was no blog post about Cortex-Analyzers 1.15.1. Call us lazy but there was nothing Earth-shattering, pole-shifting in that release. Nonetheless, here are a list of fixes included in that release and from which you’ll inherit automatically if you update 1.15.0 to 1.15.2 directly:

  • #402: Malwares analyzer code relied on functionality that’s only available in Python 3.7+. It has been fixed to work with 3.4 and up thanks to the work of Arcuri Davide.
  • #404: fixes a bad folder renaming in the HIBP (Have I Been Pwned) analyzer.
  • #398: MISP Search analyzer wouldn’t run without the enum dependency. Contributed by Mars Huang. Later improved in 1.15.2 (see above).

No Luck Luke?

If something does not work as expected, keep calm and ask on our user forum, reach out to fellow users on Gitter, or send us an email at support@thehive-project.org.

New Year, New Analyzers

Dear fellow incident handlers and cybercrime fighters around the world, the galaxy, the known and the unknown universe, first and foremost, all TheHive Project’s team would like to wish a wonderful new year 2019 to you and to your cherished relatives. We truly hope that eagles, pandas, kittens, babars, bears and all sorts of animals will stay out of the way. And remember that you don’t need to go bankrupt by purchasing so-called Next Gen™ magical solutions that work only when there’s a full moon and the page number of the book you are currently reading is 42 to investigate threats 😉

We would like to begin the year by introducing version 1.15.0 of Cortex analyzers, bringing the total number of analyzers to a whopping 113! And thanks to Kyle Parrish, this release improves the Mailer responder to allow you to specify a custom port number for your SMTP server and adds a new one to blacklist observables on Cisco Umbrella utilizing the Enforcement API. The Cisco Umbrella Blacklister responder will then add the tag Umbrella:blockedto the observable.

Cortex-Analyzers 1.15.0 also include fixes and enhancements for Eml_Parser, IBM X-Force, Fortiguard, and Shodan. Most of these modifications were contributed by our continuously growing user community. Thanks to all of those who help us in our mission to provide free and open source security incident response tools to the masses!

Please read the relevant sections in the Cortex installation guide to install or update your analyzers and responders in order to benefit from all this sweet & tasty honey.

New Analyzers

The following analyzers have been added:

Cyberprotect

This analyzer lets you query the Cyberprotect ThreatScore service for domains and IP addresses. No configuration is needed and it can be used out of the box.

TheHive displays the analyzer results as follows:

Have I Been Pwned

The HIBP_Query analyzer lets you check email addresses on Have I Been Pwned. You can use an optional parameter to include unverified breaches in the search results. Otherwise, it can be used without any additional configuration.

When called from TheHive, results would display as such:

PatrOwl

As it name states, The Patrowl_GetReport analyzer will let you get the current PatrOwl report for a FQDN, a domain name or an IP address. You need a running PatrOwl instance or to have access to one to use the analyzer.

If you fire it from TheHive, it would display results as follows:

SecurityTrails

This analyzer comes in two flavors in order to get Whois data and Passive DNS details using SecurityTrails. To use both flavors, you will need an account for the service to retrieve the associated API key, which you need to configure the analyzers.

SecurityTrails_Passive_DNS displays results in TheHive as follows:

The Whois variant produces reports such as:

Cisco Umbrella

In addition to Cisco Umbrella Investigate, you can now query the Umbrella Reporting API for recent DNS queries and their status for a domain name using the new Umbrella_Report analyzer.

New Shodan Flavors

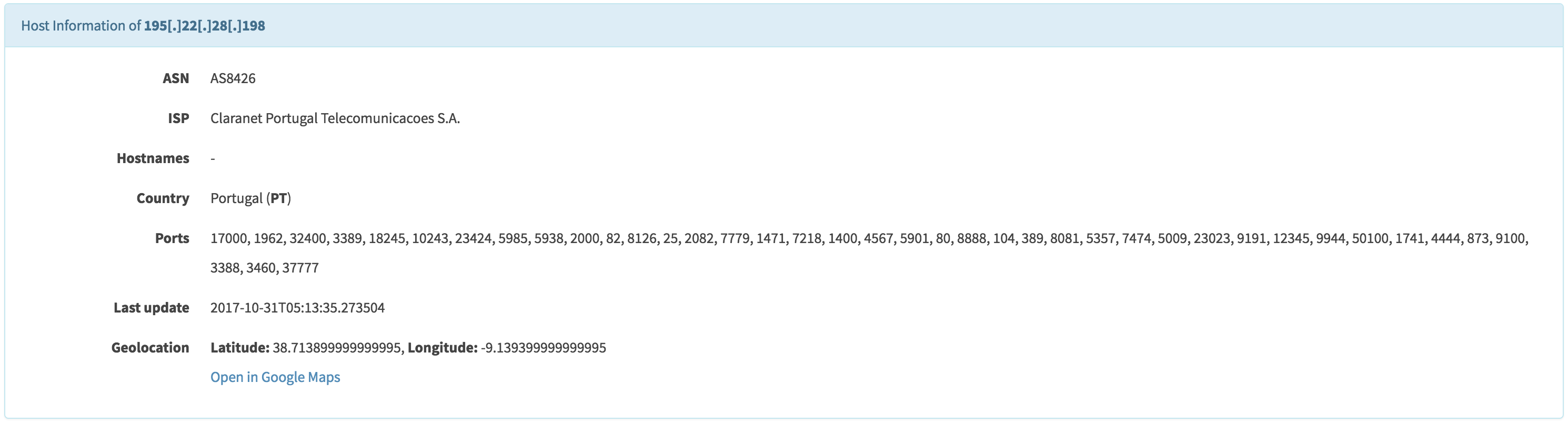

In addition to Shodan_Host and Shodan_Search, which allow you to obtain Shodan information on a host and the search results for a domain name, now you can get domain resolutions (Shodan_DNSResolve), obtain scan history results for an IP address (Shodan_Host_History), get information on a domain (Shodan_InfoDomain) and the reverse DNS resolutions for an IP address (Shodan_ReverseDNS).

DomainTools

The following DomainTools flavors were added to this release:

  • DomainTools_HostingHistory: get a list of historical registrant, name servers and IP addresses for a domain.
  • DomainTools_ReverseIPWhois: get a list of IP addresses which share the same registrant information. It applies to a mail, IP, or domain.

Moreover, please note that DomainTools_WhoisLookup now handles IP addresses in addition to domains and provides parsed results. DomainTools_WhoisLookup_IP is thus not needed anymore. Instead, DomainTools_WhoisLookupUnparsed has been added to do the same as DomainTools_WhoisLookup, except that the output results are unparsed.

TheHive4py 1.5.1 Released

When you need to interact with TheHive’s REST API and you ain’t shy of working with Python, TheHive4py is the way to go. It’s a free, open source library we provide to allow you to easily create alert feeders, automate certain tasks like creating cases, assign them to analysts and much more. For example, Synapse, DigitalShadows2TH and Zerofox2TH leverage the library to send alerts to your favourite SIRP/SOAR.

Sometime ago, we decided that it was time to overhaul the whole library and we began working on version 2.0.0 which will be easier to use. It should also support the full set of TheHive’s REST API calls. In the meantime we decided to release version 1.5.0, shortly followed by version 1.5.1 to support some new functionality contributed by our user community and correct a few issues.

code_quality
Source : XKCD

New Features Introduced in 1.5.0

Bugfixes Introduced in 1.5.0

  • #80: Prevent max recursion depth exceeded error, contributed by Psynbiotik

New Features Introduced in 1.5.1

Important note: TheHive4py 1.5.1 does not work with TheHive 3.0.10 or earlier versions. Please stick with 1.5.0 if you are using those versions.

Updating/Installing

To update your existing package:

$ sudo pip install thehive4py --upgrade

If you are just getting started with TheHive4py, you can forgo the --upgrade at the end of the command above.

But I just Wanna Play!

If you’d like to play around with TheHive4py 1.5.1, TheHive 3.1.1., Cortex4py 2.0.1 and Cortex 2.1.1, please download the training VM.

Paris? Are you There?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. As usual, we’ll be more than happy to help!

Correction: October 12, 2018
As reported by Robin Hahling, TheHive 1.5.1 does not work with TheHive 3.0.10 or earlier versions.

Cortex 2.1.0: The Response Edition

We released Cortex 2.1.0 as a release candidate back in July 31, 2018 along with TheHive 3.1.0-RC1. By then, the power duo which makes digital forensics, incident response and, to an extent, cyber threat intelligence, better, faster, happier, regular exercising gained the ability to perform active response.

We ate our own dog food for a couple of months. We found bugs. We added enhancements and we listened to the early adopters of these new major versions. And today we are thrilled to announce the availability of the stable release of Cortex 2.1.0 along with TheHive 3.1.0.

Cortex 2.1.0 restores the ability to query the analysis and response engine from MISP for enrichment purposes. A new version of the de facto standard for threat sharing should be released shortly as there are also some API-related issues on its side to make the integration fully working again.

Source : Consequence of Sound

Cortex 2.1.0 also gives you the ability to see the PAP (Permissible Actions Protocol) values for each analyzer as well as any custom cache values you might have configured.

You can check out the full changelog and we highly encourage you to install this new version and let us know what you think of it.

Troubles?

Shall you encounter any difficulty, please join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!





Keep Them Coming: Hashdd, URLhaus & a Revamped FileInfo analyzer

We are happy to announce the immediate availability of a new major version of Cortex-Analyzers. Version 1.11.0 includes two brand new analyzers, several updates and a few bug fixes:

  • Hashdd, contributed by  iosonogio
  • URLhaus, contributed by  ninoseki
  • The Domaintools analyzer has been updated with two new flavors: Risk and Reputation
  • The VirusTotal analyzer can (finally!) get reports for URL observables
  • MsgParser and File_Info have been merged in a new, shiny, completely rewritten FileInfo analyzer

As we are approaching the 90 analyzers mark, we wholeheartedly thank our user community for continuously contributing new analyzers, testing them and helping us improve the existing ones.

Important Notice

We made significant changes in this release in the analyzers and short reports. Prior to Cortex-Analyzers 1.11.0, the summary() function in the analyzer code generates a result such as:

"taxonomies": [{
     "level": "suspicious",
     "namespace": "DT",
     "predicate": "Risk",
     "value": "\"10\""
 }]

Double quotes were included in the resulting value. We decided to update the summary() function and make it generate the same result without double quotes :

"taxonomies": [{
     "level": "suspicious",
     "namespace": "DT",
     "predicate": "Risk",
     "value": "10"
 }]

To display the double quotes in TheHive, we updated all short reports to include them:

<span class="label" ng-repeat="t in content.taxonomies" ng-class="{'info': 'label-info', 'safe': 'label-success', 'suspicious': 'label-warning', 'malicious':'label-danger'}[t.level]">
     {{t.namespace}}:{{t.predicate}}="{{t.value}}"
</span>

Hashdd

hashdd.com is a search engine for file hashes which automatically queries 3rd party services like VirusTotal and enriches the information provided based on the 3rd party data. The analyzer includes two flavors: Status and Detail. The first one is used to query hashdd without an API key for the threat level only. The latter produces additional meta information about the sample, but requires an API key.

Results are displayed in TheHive in the following manner:

Hashdd short report

Hashdd status long report

Hashdd detail long report
hashdd — short and long report samples

URLhaus

URLhaus, a service that shares the latest malware download URLs and reports those sites to their respective hosting companies, can now be queried for domains, URLs and hashes. If the observable is found, available information will be displayed as follows:

URLhaus short report

URLhaus long report
URLhaus – short and long report samples

Domaintools Risk and Reputation

New Risk and Reputation services from Domaintools have been added as new flavors to the existing Domaintools analyzer set.

Risk Evidence

The DomainTools Risk Score predicts the risk level and likely threats from a domain that has not been observed in malicious activities, by analyzing various properties of the domain as soon as it is registered.

sc-DTrisk-short

sc-DTrisk-long
Domaintools Risk Evidence – short and long report

Reputation

The Domaintools Reputation Score gives indications about how closely a domain is related to known bad domains, actors, and IPs.

sc-DTReputation-short

sc-DTReputation-long
Domaintools Reputation – short and long report samples

An All New FileInfo

FileInfo performs local static analysis of file observables. It has been completely rewritten from the ground up to be more flexible thus it can easily be enriched with new supported file types and analysis modules. We took this opportunity to merge MsgParser, in charge of extracting and displaying Outlook emails into FileInfo.

As of this release, FileInfo now supports PDF, PE, MS Office documents and Outlook .msg files. We also added support for DDE detection and link extraction in MS Office documents, thanks to Decalage who added this in Oletools since v0.52.

sc-FileInfo-short

sc-FileInfo-long2
FileInfo – short and long report samples

Bug fixes

  • #286 : we updated the way MISP analyzer validates its SSL configuration

  • #292 : we fixed the API URL of malwares.com in the Malwares analyzer

Get It While Supply Lasts!

Each analyzer comes with its own, pip compatible requirements.txt file. To update your Cortex analyzers to 1.11.0, run the following commands:

cd path/to/Cortex-Analyzers
git pull
for I in analyzers/*/requirements.txt; do sudo -H pip2 install -r $I; done && \
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -r $I || true; done

Once done, do not forget to login to Cortex as an orgadmin and click on the Refresh Analyzers button.

Update TheHive Report Templates

If you are using TheHive, get the latest version of  the report templates and import them into TheHive.

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

Cortex 2, TheHive and a Whole Slew of Updates

After announcing Cortex 2.0.0 and TheHive 3.0.7, the first version of your favorite SIRP that is (supposedly) compatible with the brand-new version of Cortex, last week, we thought it was time to relax and enjoy the upcoming, long Easter weekend, the sunny sky of Paris (if you can pierce the veil of the Forever Grey Cloud™ that is hanging over the city of lights), and great jazz music. Heck, I even tweeted about it … only to be proven wrong by Life (and Murphy).

We literally field tested Cortex 2 for 3 weeks, we squashed bugs here and there, until almost the very last minute before the release. And yet, our QA needs to be improved by leaps and bounds as we had to release Cortex 2.0.1 one day after unveiling 2.0.0 to correct some additional bugs. And then some members of the core team and of our growing user community took it for a spin. And all hell broke lose. Well, almost 🙂

good_code
Source: XKCD

Session collisions (when TheHive and Cortex 2 are used on the same machine), analyzer malfunctions, connectivity problems … issues that were not identified during the testing phase, even in a production environment, where everything worked as expected. And we call this ‘Computer Science’. Right, right…

So we worked hard, took out our Code Hammer (it’s like Thor’s but cyber) and blasted away all the bugs that we found out or that were reported to us (arigato gozaimasu!) and we are happy to announce the immediate availability of Cortex 2.0.2, TheHive 3.0.8, Cortexutils 1.2.3 and Cortex-Analyzers 1.9.2.

TL;DR Install or upgrade Cortex 2.0.2, update Cortexutils, git pull the Cortex-analyzers repo to get the latest version of the repository, upgrade to TheHive 3.0.8, follow the Quick Start Guide and have a drink.

If you have time (which is admittedly quite scarce nowadays), please read on the changelogs:

What’s Next?

As stated in the previous post, we will release a new version of Cortex4py in order to make it compatible with Cortex 2, continue the work we started with our MISP Project friends to support MISP attribute enrichment through Cortex 2 (MISP currently only supports enrichment using Cortex 1), and perform a long-overdue overhaul of our documentation. We will also release a brand new version of TheHive4py.

Last but not least, we’ll take a hard look at ourselves and our QA. You expect us from us high quality and we hold ourselves to high standards. And we will deliver.

Support

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.
