TheHive 3.2.0-RC1: The MISP Love Edition

Guess what? Our integration with MISP, the de facto standard for threat sharing, has just gotten better with our latest beta release: TheHive 3.2.0-RC1.

While you could synchronize TheHive with one or multiple MISP instances in earlier versions and select events using filters like their age, the number of attributes they contain or exclude those which are created by specific organisations or contain one or several black-listed tags, 3.2.0-RC1 adds the ability to whitelist tags, thus limiting the events that would show up in TheHive’s Alerts pane to only those which have been tagged with labels your SOC/CSIRT/CERT needs to act on. This can be very useful for example if your Cyber Threat Intelligence analysts pre-select or create events in MISP and tag for SOC consumption those that need to be acted on.

The Hive - Logo - Schéma - V1_Plan de travail 1.png
TheHive, Cortex, MISP: The Power DFIR & CTI Trio

To use this feature, use the whitelist.tags parameter in the MISP section of TheHive’s application.conf as described in the documentation.

This new version also adds the ability to create dashboards out of responder actions, log responder operations, and offers a confirmation dialog before running a responder to avoid noob over-clicks and errors made by seasoned incident handlers running low on caffeine.

TheHive 3.2.0-RC1 will also show you the description of an observable if any while hovering over one in the Observables tab. You can also see observable tags when previewing an alert in the Alerts pane.

Last but not least, some users reported severe problems when they enabled TLS/SSL directly on TheHive without resorting to a reverse proxy such as NGINX. Blame that on the crappy TLS support in Play framework ;-). So we highly recommend using a reverse proxy for that purpose, and delegate authentication to it if you are relying on X.509 authentication, as TheHive 3.2.0-RC1 allows you to. Please check the Single Sign-On on TheHive with X.509 Certificates guide for further information.

For additional details on this release, please check the full changelog.

Warning Capt’n Robinson!

The RC in 3.2.0-RC1 stands for Release Candidate. Please help us make a great stable release out of it by testing it as thoroughly as possible and reporting back any bugs or issues you encounter so we can address them before the final release. You’ll find this release candidate in the pre-release, beta repositories.

Please check TheHive Installation guide for further details.

You got a problem?

Something does not work as expected? You have troubles installing or upgrading? Spotted new bugs? No worries, please open issues on GitHub or comment on existing ones, join our user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.

Cerana: a Sneak Peek

Initially planned for Nov 17, 2017, Cerana, the next major release of TheHive, is delayed by a few days for three reasons: fixing a few minor but nonetheless irking bugs, quality assurance, and adding small but nice features that would have otherwise required a new database migration a short while after performing one during the upgrade to this new version.

The new release date for Cerana (TheHive 3.0.0) is Dec 5, 2017, the same day we’ll have our second joint workshop with the fine people of the MISP Project during the Botconf conference in Montpellier, France (food, wine, sightseeing… well you get the picture).

If we should mention a single major Cerana feature to convince you to install it or take it for a spin, that would be dynamic dashboards, with no hesitation.

While it was enough for a start, the Statistics module doesn’t take advantage of the underlying Elasticsearch storage and the many ways we can play with all the data that analysts keep feeding to TheHive. Not only that but what about custom fields, alerts, and so on? Enter Dynamic Dashboards.



Dynamic Dashboards – Alert types and sources

To put it simply, Cerana will allow you to analyze TheHive data (almost) any way you want and chart it using different options: how many alerts of a certain type have been received during a given period? Over all the cases that are recorded within TheHive, how many observables with a specific tag and flagged as IOCs are there? …



Dashboards can be private to an analyst, shared with fellow TheHive users, imported from another instance and exported. By adding the import/export feature, we hope to foster sharing within TheHive community where teams would impart useful dashboards to their peers. Graphs can also be saved as images to add to reports.

observable_sources
Dynamic Dashboards – Sources of observables

To alleviate upgrades, Cerana will come with a few dashboards out of the box to mimic the Statistics module hence you won’t lose existing functionality when you make the move. At this stage, we’d like to remind you that we only support the current release and the previous one. When Cerana will be published, we’ll obviously support it (genius, n’est-ce pas ?) as well as Mellifera 2.13.2. Nothing else.

Dynamic Dashboards – Case status, resolution and impact

Cerana will also give you the ability to import and export case templates, a feature that has been requested by our growing user base. This could be a first step towards a global repository where case templates can be shared, refined and created according to common standards, regulations or compliance requirements. Think LPM in France, NIS in Europe, GDPR, etc. Case templates will also be improved to contain default metrics values if needed and automatically assign tasks to given analysts.

Another addition worth mentioning is the sighted flag for IOCs. When an analyst flags an observable as IOC and as sighted, it means that observable is not simply something coming from a sandbox analysis (think C2) or from a 3rd party but was confirmed as being used by a threat actor in your network. In a later release, exporting cases to MISP instances will make use of this new flag to feed MISP attribute sightings. The sighted value will also be used in the future to improve alert previewing.

Last but not least, Cerana will supervise the ‘health’ of the Cortex and MISP instances it is integrated with. The Cortex and MISP logos at the bottom right corner of TheHive UI appear when integration with those products is enabled. They will also have a coloured circle to indicate health:

  • Green: TheHive can reach all of the configured Cortex/MISP instances.
  • Orange: TheHive cannot reach all of them.
  • Red: no instance can be reached.

There are other areas (the About page, the observable analysis buttons…) where the health of Cortex and/or MISP can be monitored.

Now, if you don’t mind, we have some coding to do. We’d better get back to it if we want to give you a luscious release. À bientôt !

Mellifera 12: The MAGA Edition

TheHive Project French Chefs are very happy to announce Mellifera 12, a brand new, all shiny, major version of TheHive.

This MAGA (Make Analysis Great Again) edition of your (soon to be?) favorite Security Incident Response Platform (SIRP) contains an awful lot of changes and improvements. While you can read the full changelog while waiting in line for your burger at HopDoddy or for your turn for the latest Disney attraction, we’d like to concentrate on a few features that would make you enjoy Digital Forensics & Incident Response like never before 🙂

Go Short or Go North

The Observables tab can now display the short (a.k.a. mini) reports produced by analyzers. Whenever you run an analysis (or many), the mini-reports will be shown as soon as the corresponding analyzer jobs have successfully finished. That way, you no longer have to click on each observable to access the short report.

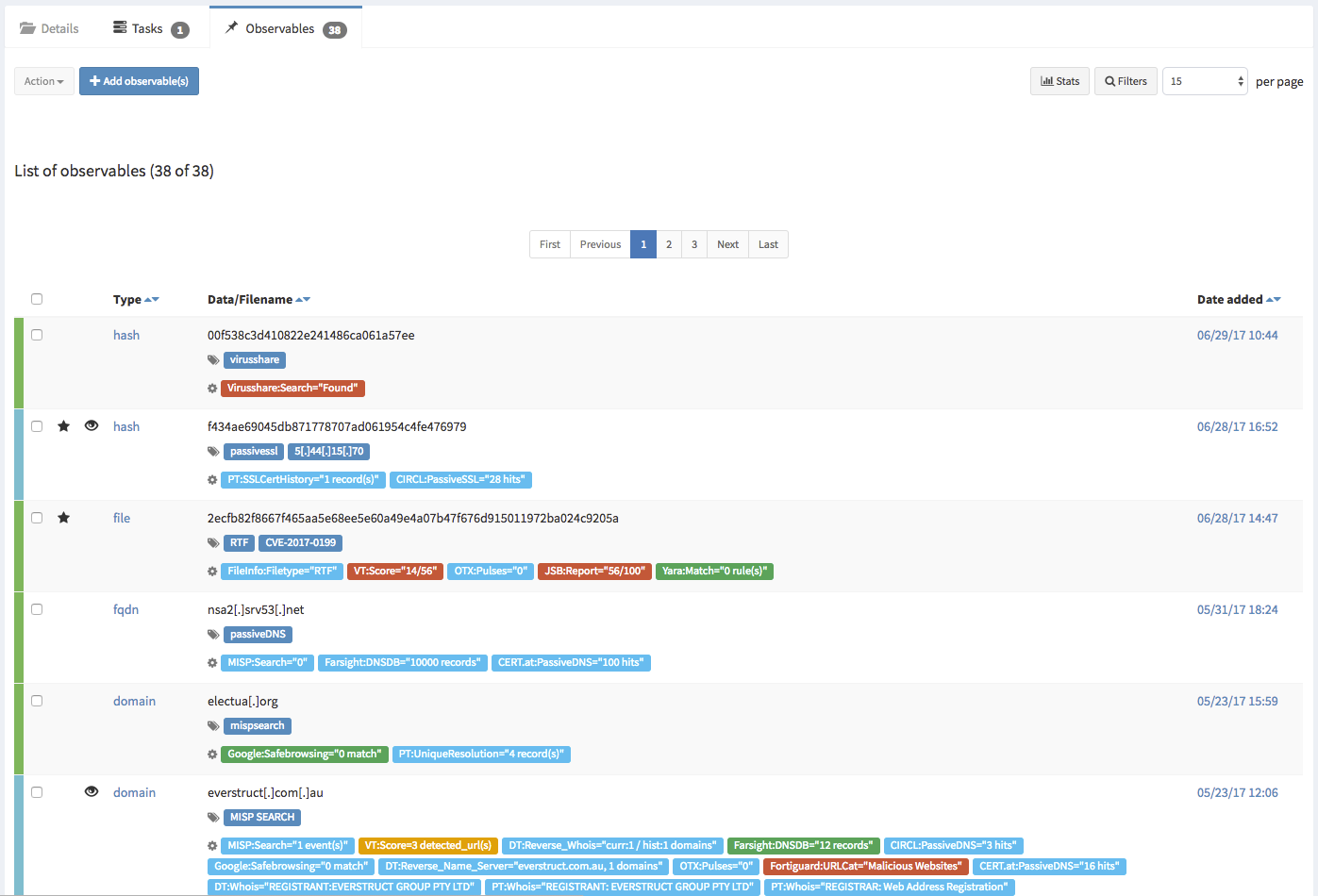

Short Reports shown on the Observables Tab

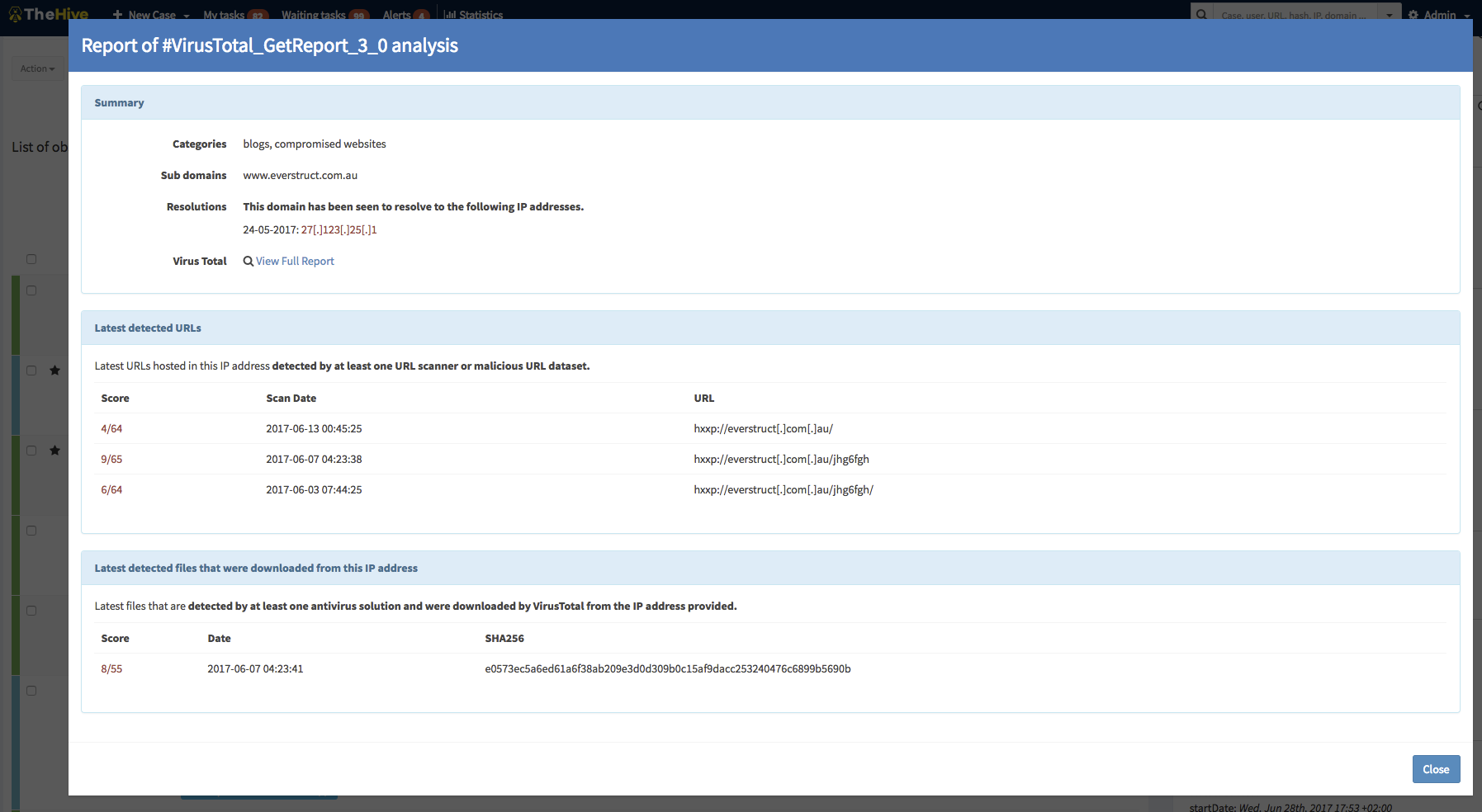

In fact, you don’t even have to click on the observable to access the long reports. You must simply click on the corresponding short report and the long one will be displayed on top of the observables tab as shown in the following screencast. Ain’t that nifty?



A Single Click on the Short Report Shows the Long One

The short reports have been also improved to follow a taxonomy. To get to this stage, we had to review all 24 analyzers and their flavors, add new functionality to the CortexUtils Python library and improve the analyzers to add a summary section to their JSON output which Mellifera 12 interprets and displays according to a color code as described in our previous post. Please make sure to read it as it contains important information on how to update your cortexutils version and the analyzers as well as the report templates.

Is This Alert New or What?

Mellifera 12 introduces an important feature pertaining to alerts. To put it simply, whenever you receive a new alert from MISP, email, SIEM or any other source that you have connected with TheHive, the alert preview page will tell you if there are similarities with existing cases and if so, Mellifera 12 will let you import the new alert in the existing case and any updates made to that alert (think of an ongoing MISP event) will be automatically added to the case.

Alert Preview Page with the new Similar cases Section

Template this, Template that

In addition to the ‘similarity’ feature outlined above, Mellifera 12 lets you choose the case template to use when importing a new alert instead of having to use only a specific case template per alert type/source.

Choose the Template You’d Like to Use to Import an Alert

Custom Fields

We heard our community and implemented a feature that was requested by several users: custom fields.

So you’d like to add a business impact to a specific type of cases? Or a set of TTPs? Or a Threat Actor? Or specify a Business Unit? No problem! Ask an admin to create a custom field, associate it with a case template and there you go.

Add a Custom Field

Unlike metrics, custom fields must not be filled to close a case. You can also supercharge a case with custom fields that have not been associated to a case template. We currently support four types of custom fields: strings, numbers, booleans and dates. And you can create lists of acceptable values to limit your analysts’ choices to legitimate data.

Other New Features

Mellifera 12 gives you the ability to reopen closed tasks. And when viewing the related cases tab of the current case, you’ll see the resolution status of the ones that were closed (false positive, true positive, indeterminate). External links will also be opened in a new tab.  Moreover, files included in alerts are no longer limited to 32 KB so you have no longer an excuse to avoid sending user email reports with their attachments to TheHive 😉

Download & Get Down to Work

If you have an existing installation of TheHive, please follow the migration guide.

If you are performing a fresh installation, read the installation guide corresponding to your needs and enjoy. Please note that you can install TheHive using an RPM or DEB package, use Docker, install it from a binary or build it from sources.

Support

Something does not work as expected? You have troubles installing or upgrading? No worries, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We are here to help.
