It’s now time for TheHive 4 to get an update: TheHive 4.0.1 is out!

Back in July, we announced TheHive 4.0, the foundation for future releases of your favorite Open Source SIRP.

Today, we are pleased to deliver one of the biggest patch releases we’ve done so far, in terms of number of fixed issues: TheHive 4.0.1! Not only did we squash lots of bugs, we also included some cool improvements we didn’t want to hold until the next version.

As for TheHive 3 and Cortex unveiled few days ago, we fixed the vulnerabilities reported by Play framework in October as well.

A huge work has been accomplished to fix a backlog of bugs (thanks to the community) in several parts of the product:

  • Configuration;
  • API;
  • Dashboards;
  • Livestream;
  • Cases;
  • Alerts;
  • Observables;
  • Multi Factor authentication;
  • Active Directory authentication;
  • Export to MISP.

You can find details of the 80+ issues included in this milestone: Changelog file.

Wait, there is also new stuff:

  • Cases and Alerts similarity fine tuning;
  • Similar cases in Alert preview panel refined;
  • Filtering capabilities improvements;
  • New UI settings & options;
  • Custom fields in Case and Alert lists;
  • Statistics panel improvements;
  • API key in user settings page;
  • More migration tool options.

Cases and Alerts similarity fine tuning

In TheHive, correlation between Alerts and Cases, and between Cases themselves, is computed throughout their respective Observables:

  • A Case is considered similar to an Alert, if they have at least one common observable;
  • A Case is considered related to another Case, if they have at least one common observable.

In some situations, those relationships are undesirable when based on useless/meaningless observables.

Starting with TheHive 4.0.1, Observables are enriched with a new attribute called ignoreSimilarity, set to false by default. Now, when this attribute is set to true, an observable is simply not taken into account in the relationship between two cases, and is not involved in the similarity calculation, for Cases and Alerts.

This attribute is displayed alongside with the IOC and Sighted flags, in the Observables list – which has been tweaked for the occasion – as well as in the detailed view.

IgnoreSimilarity flag in the revamped Observables list

And you can also edit this for a set of selected observables.

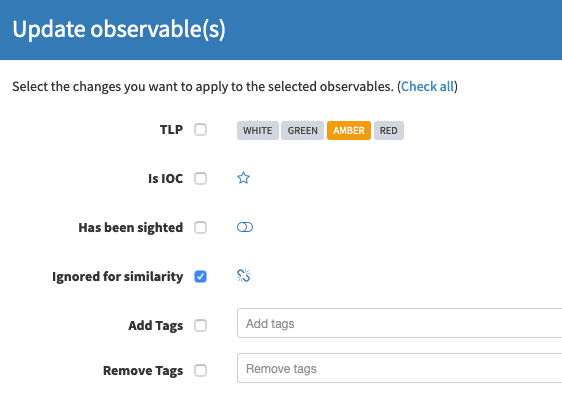

Edit “Ignored for similarity”

Long story short, if you want to break a correlation, you just need to set the linking Observable‘s ignoreSimilarity flag to true.

Alerts and similar Cases

The attribute mentioned earlier is taken into account when correlating Alerts with existing Cases : the Similar Cases view in the Alert preview dialog.

Observables with ignoreSimilarity set to true will be ignored when fetching cases similar to the current Alert, whether it is in the Alert or the Case side.

A forthcoming update of thehive4py library will allow to set this attribute in Alerts, along with many other new things.

The Similar Cases view has been thoroughly enhanced to provide more highlights facilitating alert triage and the merging of alerts into existing cases. First, a column named “Matched” has been added. It contains the list of observable dataTypes and the number of occurrences matching the Alert : this should be very useful to identify quickly what type of data has matched the alert content. A filter on this column has also been added.

And there are more refining capabilities in this view:

  • Sorting and Filtering on Title of Similar Cases;
  • Specifying a minimum observables rate that matches the Alert;
  • Specifying a minimum IOCs rate that matches the Alert.
Refining the Similar Cases view during Alerts triage

… And, above all, columns can now be sorted. With all these new capabilities, triage and merge Alerts in Cases should be easier.

Filtering capabilities improvement

In TheHive 4, filter forms have the same structure all over the product. Any improvement in the area, benefits to all the listing pages.

For example, in the alert similar cases tab, a new filter form has been included. You can quickly select the type of Cases you want to display, but also use the advanced rules and search criterias.

In this release, the filter component has new capabilities:

  • Date filter: now allows setting dynamic ranges instead of setting from and to fixed date values. Possible values are:
    • Today;
    • Last 7 days;
    • Last 30 days;
    • Last 3 months;
    • Last 6 months;
    • Last year;
    • Custom: allowing the old-fashioned way of setting date ranges.
  • Tag filter: Autocomplete is now enabled.
Advanced filtering for Similar Cases during Alert triage
Autocompleted tags when adding a filter

In TheHive 4.0.1, there is one more place that welcomed a filter form: the list of Alert observables in the preview dialog.

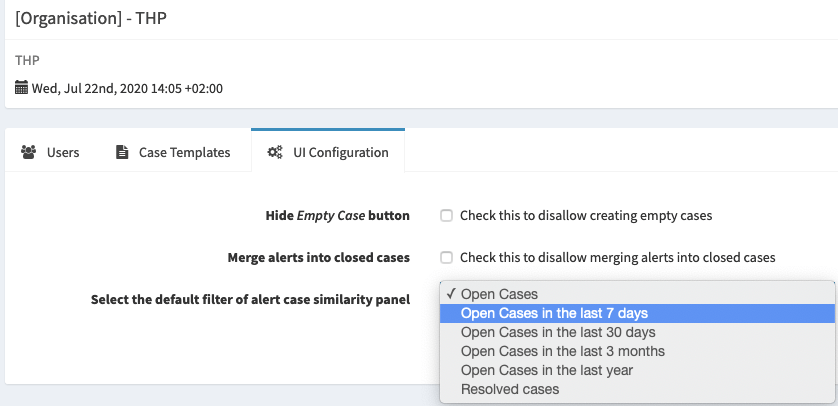

New Org level UI settings

UI configuration page is the place where TheHive adds new options to customise the behavior of the UI, for a given organisation. This is an area that will be expanded over time.

For this milestone, two new options have been introduced:

  • Allow merging Alerts in resolved cases;
  • Default filter of Alert similar cases.
Default filter for Similar Cases in Alerts preview

The first one is self-explanatory and will hide the `Merge into case` button in the Alert similar cases section

The second one allows an administrator define, for an organisation, the default filter to apply to Alert similar cases view. For example: “show only potential similar cases created in the last 7 days and are still open”.

If during the triage, the filter has been updated by an analyst, the default filter cas be retrieved through Default filter option of the Quick Filters.

Retrieve default filter in alert similar cases

Custom fields in Case and Alert lists

“Damn, why I’m not able to see my custom fields in my cases list”, “It’s a shame I cannot filter my alerts with my custom defined properties”… We are pretty sure you said it, at least once.

Well, you dreamt of it, and here we go, we did it for Cases and Alerts

  • You will be able to see all the custom fields you defined in your Case Templates and propagated to your Cases;
  • Custom fields with undefined values are not displayed;
  • Custom fields are shown with respect of the order you define;
  • Clicking on a custom field, filters your lists using the selected value;
  • You can enable displaying the custom fields using the toggle button on the toolbar located on top of the filter form;
  • All those capabilities are available in Cases and Alerts views.
Custom Fields in Alerts list

New statistics view in Cases and Observables lists

The Stats view has been revamped to represent the statistics using both tables and shiny colourful donuts (not only for managers).

This improvement has been made in Cases, Observables and Alerts views.

New “Stats view” in Cases list

User settings

This feature has been initially introduced in Cortex and was missing in TheHive. All users can now access their API key, copy or update it, as long as an administrator created it first. No more API keys sent over emails or chat applications.

User settings with API key enabled

Migration

The migration assistant program has been updated with a few bug fixes and new filtering options. When migrating, you can now specify:

  • If you want to include or exclude Alerts generated from specific Sources or by their Type;
  • If you want to include Audit trails regarding specific objectType (case, case_task, case_observable …);
  • If you want to filter out Audit trails with specific actions (Update, Creation, Delete).
/opt/thehive/bin/migrate --help

[..]
  --include-alert-types ,...
                           migrate only alerts with this types
  --exclude-alert-types ,...
                           don't migrate alerts with this types
  --include-alert-sources ,...
                           migrate only alerts with this sources
  --exclude-alert-sources ,...
                           don't migrate alerts with this sources
[..]
  --include-audit-actions
                           migration only audits with this action (Update, Creation, Delete)
  --exclude-audit-actions
                           don't migration audits with this action (Update, Creation, Delete)
  --include-audit-objectTypes
                           migration only audits with this objectType (case, case_artifact, case_task, ...)
  --exclude-audit-objectTypes
                           don't migration audits with this objectType (case, case_artifact, case_task, ...)

So, you can migrate your data directly to TheHive 4.0.1.

However, please note that the migration tool does not support data from TheHive 3.5.0 yet. In short, you can only consider migrating you data from TheHive 3.4.0, 3.4.1, 3.4.2 or 3.4.4 to TheHive 4.0 or TheHive 4.0.1 for the time being.

How to install/update ?

Our installation guides are up-to-date.

Important note

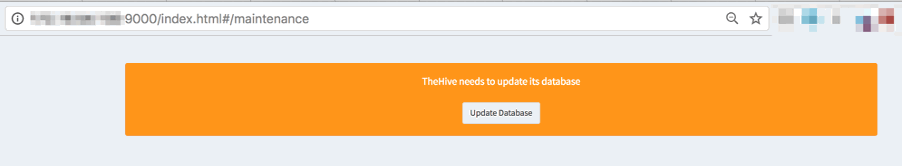

If you are updating an existing instance of TheHive 4.0.0, ensure to read the installation guide. Since our recent release of TheHive 3.5.0, we updated our repositories. The codename of repositories containing all new released packages is now named release, instead of stable. So update your apt or yum repository file.

Have you got a minute to let us know how you use TheHive ?

We would love to hear from you (10 questions < 1minute) : https://t.co/l5osjvQ1k7

Many thanks for taking the time 🙏

How to report issues

Please open an issue on GitHub with the dedicated template for TheHive 4. We will monitor them closely and respond accordingly.

Running Into Trouble?

Shall you encounter any difficulty, please join our user forum, contact us on Discord, or send us an email at support@thehive-project.org. We will be more than happy to help!

TheHive 3.5.0-RC1 and Cortex 3.1.0-RC1 are here!

Elasticsearch 7.0 can read indices created in version 6.0 or above. An Elasticsearch 7.0 node will not start in the presence of indices created in a version of Elasticsearch before 6.0.

https://www.elastic.co/guide/en/elasticsearch/reference/7.x/breaking-changes-7.0.html#_indices_created_before_7_0

Who could imagine what’s hiding behind this sentence ?

To be honest, we managed to support Elasticsearch 7.x pretty quickly ! But only for new and recent installations and instances — read, initially installed with Elasticsearch 6.x.

The harder part was ensure older instances, with indexes created  with Elasticsearch 5.x, can migrate smoothly like for previous migrations: «stop the application, update the database software, update application and restart everything ». You might have to put your hands on the keyboard.

Source: Google Images

⚠️  TheHive 3.5.0-RC1 and Cortex 3.1.0-RC1 are not recommended for production use. These versions are intended for test only ; please, read carefully the full blog post and the associated documentation. Feel free to try it, try your migration and send us your feedbacks.

New and recent installations

If your instance has been initiated with Elasticsearch 6.x, you can follow the following process :

  • Stop TheHive version 3.4.2
  • Stop Elasticsearch version 6.x
  • Update Elasticsearch configuration file
  • Update Elasticsearch to version 7.x and restart the service
  • Update TheHive and restart the service
  • Update Cortex and restart the service

Instructions to install TheHive 3.5.0-RC1 or Cortex 3.1.0-RC1 can be found in this guide.

At this stage, connect TheHive and Cortex with your browser and you should be invited to update the database :

Older indexes

This is the tricky part. If you are using an instance initiated with Elasticsearch older that version 6.0, it is highly probable that you have to follow an heavier process to upgrade. In few words, you will have to :

  • Stop TheHive and Cortex applications
  • Create new indexes in Elasticsearch 6.x with part of the settings of your current indexes
  • Do specific reindexing operations to this new indexes
  • Delete old indexes.

How to identify if your index is ready for Elasticsearch 7

You can easily identify if indexes are ready for Elasticsearch 7. On the index named the_hive_15 run the following command:

curl -s http://127.0.0.1:9200/the_hive_15?human | jq '.the_hive_15.settings.index.version.created_string'

If the version is 6.x.x then the index will be read by Elasticsearch 7.8.x. Otherwise (version is 5.x.x of below), reindexing the index is required.

Migration guide

You are not left alone there. A dedicated documentation is available. It should help you run this specific actions on your Elasticsearch database, and also install or update application whether you are using DEB, RPM or binary packages, and even docker images :

https://github.com/TheHive-Project/TheHiveDocs/blob/master/admin/upgrade_to_thehive_3_5_and_es_7_x.md

How to report issues

Please open an issue on GitHub using the template made for TheHive 3.x if you’d like to report a bug on this version. We will monitor those closely and respond accordingly.

TheHive 4.0 is out!

Introduction

Several months,no, years ! after the first line of code – the first line was committed in 2016–, we are very excited and proud to announce the release of TheHive 4.0.

This means more than a major version for us. This was – and still is — like a completely new project, a new generation, a lot more challenging than before. We had to make the application climb a major step to introduce new key features, some we added in this version, others we have in mind for the future.

Objectives

The development of the second generation of TheHive, aka. version 4, was driven by three main objectives:

  • Add support to multi-tenancy: allow 1 instance of TheHive to serve many teams and organisations
  • Add support to Role Based Access Control to define fine grained user profiles
  • Rethink the data model and structure to support the goals listed above (Moving from Elasticsearch as main persistence layer, to a data model designed as a graph).

Challenges

TheHive Project is thoroughly adopted by SOC, CERTs and CSIRT teams, who decided to go with TheHive Project since the first releases. It is worth noting that until today, TheHive has had a total of 52 releases since 2016.

Those teams helped the project by contributing to our QA, questions, feature requests etc… and our way of thinking drove us to not let them down, and we decided to produce a backward compatible software.

The way we have been working until now aims to make our community move smoothly from TheHIve 3 to TheHive 4.

Backward compatibility

This is the most difficult challenge we have had, but we have hard heads and soft hearts.

TheHive 4 is expected to be backward compatible, thanks to APIs v0. Yes, we provide versioned APIs having the same endpoints as TheHive 3, and producing the same results. Search APIs also support the same query language, except some corner cases like searching using the “_string” operator (which is tightly coupled to Elasticsearch query language, but we have working alternatives).

Performance concerns

Supporting backward compatibility might force you to accept complex designs. And TheHive 4 RC3 was a clear example of that limitation.

Many kind users who tested TheHive 4 RC3, raised performance issues, slow UI problems etc… And it was completely expected. We thank them for making such a pressure on us, we used it to boost the refactoring of the UI, which was using backward compatible APIs (unoptimized for the new data model and representation), specially to read data (listing cases or observables for example).

We can discuss the technical details of this hard point later, but it mainly relates to navigating through graph-based data using a document based query system, which is not optimised.

For example, if you want to search for list of observable of a given case, the ideal way of doing that on a graph-base model is to:

  • Get the case by its ID, which is indexed (very fast operation)
  • Navigate through case relation, to find its links of type observable

But the backward compatible query language works differently: It scans all the graphs to search for observables that have a case parent with a given ID, which has a slower performance in a graph-based database.

Multi-tenancy and RBAC

TheHive 4 comes with a special multi-tenancy support. It allows the following strategies:

  • Use a siloed multi-tenancy: you can define many organisations, without allowing them to share data
  • Use a collaborative multi-tenancy: you can define a set of organizations and allow them to collaborate on specific cases/tasks/observables, using custom defined user profiles (RBAC)

This feature is very powerful but has a cost: an expected performance overhead. For example, when scanning the graph of data to search for a list of cases, TheHive must return the cases of your organisation and the case you can have access to because of the sharing rule.

New foundations

TheHive 3 was based on a framework called Elastic4play, written by Thomas to abstract all the routines required by a web application written with play 2 and using Elasticsearch.

TheHive 4 has its own core framework: Scalligraph, built to handle the following features.

Scalligraph will be the foundation of the next major version of Cortex.

What’s new in 4.0

TheHive 4.0 release has a significant amount of changes. We will quickly explain the most important, and you can refer to the change logs if you need to have more details.

UI Performance

This was the most important task of this release. As we mentioned above, we were using backward compatible APIs in RC3 release, and migrated 80% of the UI to use the APIs v1 which are optimised for the new graph-based and multi-tenant data model.

OAuth2 Support

This topic gave birth to many github issues, some of them related to TheHive’s UI not correctly redirecting authenticated users. OAuth2 support has been tested with many providers like: Okta, Keycloak, FusionAuth, Microsoft Azure, Office 365 and Google Gsuite.

Starting from this version, there is an API endpoint that handle all the authentication and redirections: /api/ssoLogin

Here is a configuration sample for MS Office 365

{
  name: oauth2
  clientId: "CLIENT_ID"
  clientSecret: "CLIENT_SECRET"
  redirectUri: "http://THEHIVE_URL/api/ssoLogin"
  responseType: code
  grantType: "authorization_code"
  authorizationUrl: "https://login.microsoftonline.com/TENANT/oauth2/v2.0/authorize"
  authorizationHeader: "Bearer "
  tokenUrl: "https://login.microsoftonline.com/TENANT/oauth2/v2.0/token"
  userUrl: "https://graph.microsoft.com/v1.0/me"
  scope: ["User.Read"]
  userIdField: "mail"
}

You can find more details about the OAuth2 support in the authentication config documentation

Improved Analyzer and Responder selection

Analyzer selection when calling bulk observable analysis has been improved to show the possible analyzers per observable type.

Analyzers selection during observable bulk analysis

For responders, the user experience has been improved as well, especially for instances with a big number of responders. The simple dropdown menu available to select responders has been replaced by a dialog allowing list filtering and scrolling:

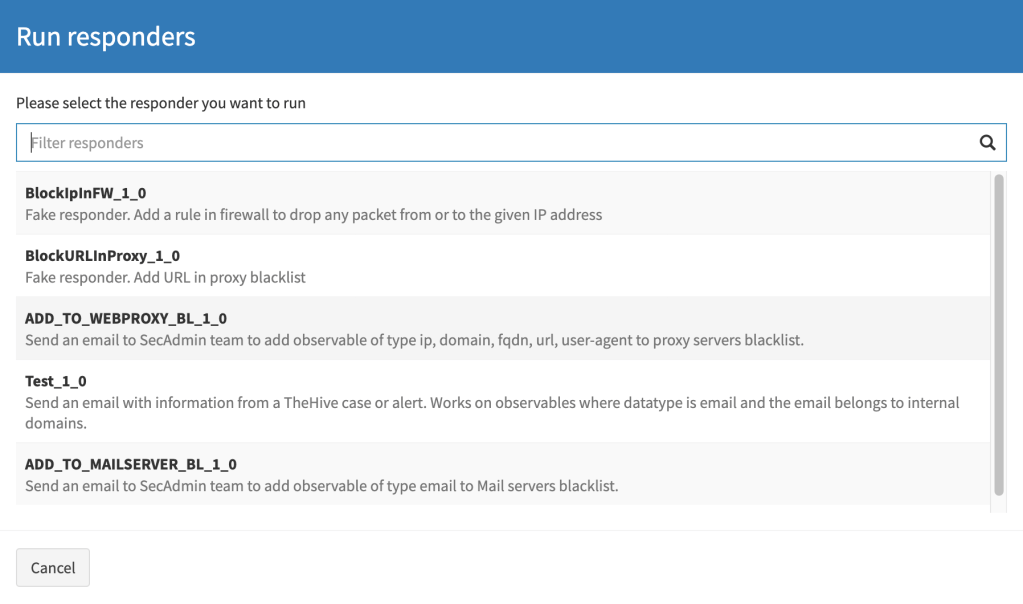

New Responder selection dialog

Add bulk operations to case listing

Before this release, simple case updates required visiting the cases one by one and editing them. We added in this release a bulk edit feature, depending on user’s permissions on the selected cases

Bulk edit dialog, used here from case list

The same bulk editing component has been used to improve the same operations on observable list page.

Other noteworthy changes

We need to mention that the following changes have been included in TheHive 4.0 release:

  • Add pagination and filtering to users administration
  • Add back the UI configuration by organisation. The only available option is related to enabling/disabling the use of Empty Case.

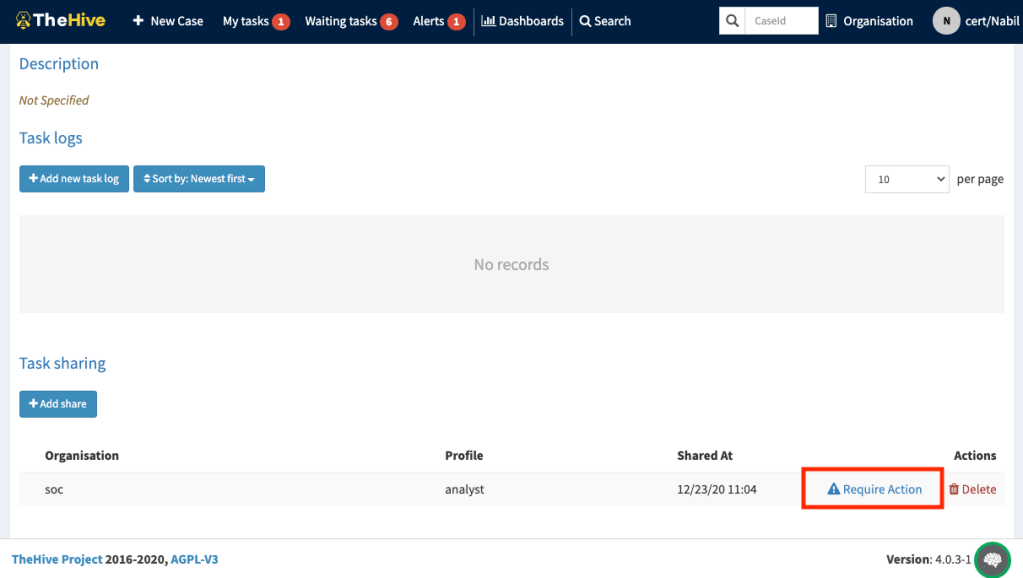

  • Show sharing summary in task and observable lists
  • Improve alert preview dialog
  • Add alert externalLink feature allowing the display of external links for any alert, not only MISP alerts.

Known limitations

Even after 49 closed Github Issues, there are still major topics to be addressed by the upcoming releases:

  • Add back support to case merge which is not satisfying today. The challenge is to find the best to merge cases and make sure that it works in a profile-based multi-tenant design.
  • Add full text search support. In older versions, TheHive benefited from the full text search capabilities of Elasticsearch. With the new database and persistence system, full text support requires adding a dedicated indexing layer.

Installing and testing TheHive 4.0

After months of testing versions, this official release means that we consider it ready for production purposes. If you’re new with TheHive, we recommend going with TheHive 4.0.

Several installation guides have already been published, suitable with the chosen operating system and installation type, and new are coming.

For testing and training purposes, a virtual machine with a simple configuration of TheHive 4.0 and Cortex 3.0.1, is also published and available starting from now. Please refer to the documentation for download and usage instructions.

Want to upgrade from TheHive 3.x ?

All changes brought to TheHive make the upgrade more challenging than installing the new package and watch the progress bar. To support you with the upgrade, a migration tool comes along with the application to shift your current version of TheHive to TheHive 4.0.

A dedicated guide has been published to help users with this significant task. We recommend using a new server aside from your production server to ensure everything works fine with the migration.

Future of TheHive 3.x

This major outcome doesn’t mean TheHive 3 end of life is reached. As previously announced, we plan to support this version for some time, our next milestone being to support Elasticsearch 7.x with a first Release Candidate.

How to report issues

Please open an issue on GitHub using the template made for TheHive4 if you’d like to report a bug on this version. We will monitor those closely and respond accordingly.

ElasticSearch, TheHive and Cortex

For a few weeks, many questions have been arising regarding the End of Life of ElasticSearch 6.8, and its impact on TheHive and Cortex applications.

We were about to release TheHive 4.0-RC3 when Thomas, akwardly calmly announced to us, having found some time (where?) to review new features and most important, breaking changes introduced by ES7. We have now a good idea of what should be updated or added in the code, as well as the amont of work it represents to get the application working perfectly.

What about current version ?

Few months ago, we announced our intention to maintain current stable versions until ES6 End of Life. At that time, we didn’t expect it to be sooner.

Discontinuing TheHive 3.x with the release of TheHive 4.0 has never been in our plans. With the time, more and more organisations adopted them, and it is important for us to give everyone enough space to schedule and make the move to the TheHive 4.0. This is why TheHive 3 and Cortex 3 will support ES7.

The good news is our ability to announce that the changes introduced by ES7 have no major impacts on us, We are scheduling a first RC1 for TheHive 3.5.0 and Cortex 3.1.0 in the last week of July. Not only will they include support for ES7, but also a few interesting improvements that will be introduced in the coming blog posts.

What’s next ?

Needless to say, the chiefs are sparing no effort in focusing on TheHive 4.0, which requires a huge amount of attention. The application stack has completely changed – the most important adjustment is pushing aside ElasticSearch in favour of Cassandra to manage TheHive’s data storage – and thanks to the community, lots of bugs have already been fixed allowing it to be stronger with time.

Once we consider TheHive 4.0 reliable enough to be used in production, we will publish it as a stable version, and that would be in the coming days. After all, our plans are to make the applications use the same technology stack, which will directly benefit to the next major version of Cortex.

Besides, Cortex is scheduled to be upgraded and based upon Scalligraph, Cassandra and Hadoop. We hope to publish a first RC in few months.

Stay tuned sounds like TheHive Project’s Twitter account will be on fire 🔥 in the coming days!

New TheHive 3.4 Patch Releases

Last month (that should be… April… we are kinda losing track of time during the confinement), we made silently 2 patch releases for TheHive 3.4, our current stable version even if we have our hands full of soap and bleach as we are working on the eagerly awaited TheHive 4.0.0 final release: 3.4.1, shortly followed by 3.4.2. Your lovely bees are truly committed at keeping TheHive 3 branch buzzing well after 4.0.0 is out.

As usual, we’d like to start by thank the community for bringing the issues they discover to our attention. This is definitely one of the best contributions that we can get from you!

A simple way to help any open source project

3.4.1 Release

Released on April 25, 2020, 3.4.1 mainly fixed some docker-related issues as well as problems with OAuth2 and MISP integration, in addition to a few bugs, as described in the changelog.

Implemented Enhancements

  • Docker: TheHive fails to connect to Elasticsearch (NoNodeAvailableException) #854
  • Improved support for OpenID connect and OAuth2 #1110
  • TheHive’s Docker entrypoint logs the Play secret key at startup (… looking elsewhere hoping not to attract too much attention on this one) #1177
  • Configure TheHive’s first run using Docker Compose #1199
  • TheHive’s docker containers should be orchestration-ready #1204
  • MISP synchronisation: any attribute having the to_ids flag will be imported as ioc by TheHive. In the same way, when you export a case to MISP, observables which have the ioc flag on will become MISP attributes for which to_ids is true #1273

Closed Issues

  • Include Dockerfile in root of project #1222
  • Docker user daemon with id 1 causes permission issues with local #1227

Fixed Bugs

  • Fix MISP sync issues related to Docker #866
  • Owner is case-sensitive on API calls and should be lowercased #928
  • Bug: Observable without data breaks display of observables #1080
  • Docker-Compose Elasticsearch incompatibility #1140
  • Analyzers that take more than 10 minutes run into timeout #1156
  • TheHive 3.4.0 migration log errors ([error] m.Migration – Failed to create dashboard) #1202
  • Computed metrics are not compatible with the painless scripting language #1210
  • OAuth2 Bearer header should be of the format “Authorization Bearer” ? #1228
  • Health API endpoint returns warning when everything is OK #1233
  • Job submission sometimes fails when there are multiple Cortex servers #1272

3.4.2 Release

3.4.1 introduced a regression which was spotted few hours after it has been made public. 3.4.2 fixes t the problem.

It also adds a quick improvement allowing users to have access to error messages returned by Cortex Responder calls.

Display of a failed responder jobs, in case details page

Implemented Enhancements

  • Providing output details for Responders #962

Fixed Bugs

  • File observables in alert are not created in case #1292
  • Analyzer’s artifacts tags and message are not kept when importing observables #1285

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help as usual!
