Update: 2 days after publishing this blog post, we’ve released Cerana 0.1 (TheHive 3.0.1) which fixes a number of issues. We encourage you to use 3.0.1 instead of 3.0.0.
The friendly honeybees at TheHive’s code kitchen were pretty busy lately even though winter came and temperatures have been close to zero Celsius in Paris, France. As we wrote a couple of weeks ago on this very blog, we are happy to announce Cerana to the world, available immediately.
Cerana or TheHive 3.0.0 is the latest (and obviously greatest) release of a now highly popular open source, free Security Incident Response Platform (or SIRP for short). Its flagship feature in comparison to previous releases is Dynamic Dashboards.
Dynamic Dashboards replace the Statistics module in Cerana to allow you to explore the data available in Elasticsearch, which TheHive uses for storage, in many ways. For example, you can have a usage breakdown of Cortex analyzers, the number of open cases per assignee, the number of alerts per source (MISP, email notifications, DigitalShadows, Zerofox, Splunk, …), the number of observables that have been flagged as IOCs in a given time period, how many attributes were imported from MISP instances, top 10 tags of imported MISP attributes or incident categories.
Dynamic Dashboards can be created by an analyst and kept private or shared with the other team members. Dashboards can also be exported and imported into another instance. This would facilitate community participation in the establishment of valuable data exploration graphs to drive DFIR activity and seek continuous improvement.
When you’ll migrate to Cerana, you won’t have to build dashboards from scratch. We recreated more or less those which were available under the Statistics view and included them in the Cerana build.
Cortex and MISP Health Status
Cerana will also allow you to monitor the health status of all the Cortex and MISP instances that it is connected to. In the bottom right corner of TheHive’s Web UI, the Cortex and MISP logos appear when you have configured the integration with those products as in previous releases. However, the logos will have a small outer circle which color will change depending on whether Cortex and/or MISP instances are reachable or not.
If TheHive can’t reach N out of M Cortex/MISP instances, the outer circle will be orange. If it can’t reach all M instances, the circle will red. If everything is fine, the circle will be green. The exact status of each Cortex/MISP instance can be seen in the About page. And when you try to run analyzers on a Cortex which cannot be reached, TheHive will tell you so as well.
In previous releases of TheHive, observables can be flagged as IOCs. However, this doesn’t necessarily mean you’ve seen them in your network. Think for example of a suspicious attachment which you’ve submitted to Cuckoo or Joe Sandbox through Cortex. The analyzer returns some C2 addresses to which the sample tries to connect to. You’d be right to add those C2 addresses to your case and flag them as IOCs. Then you search for them in your proxy logs and you find connection attempts to one out of four. In previous versions, you’d add a seen label but this would be inconsistent among analysts. One may use found instead. Another will add a description and no labels.
To avoid such situations and give you a simple way to declare an IOC as seen, Cerana adds a sighted toggle which you can switch on/off. We will leverage this toggle in future versions to indicate sightings when sharing back cases to MISP.
Other Features and Improvements
Cerana contains numerous other features and improvements such as:
Case template import, export
The ability to assign default values to metrics and custom fields to case templates
The ability to assign by default tasks to their rightful owners in case templates
Show already known observables when previewing MISP events in the Alerts page
Add autonomous systems to the list of default datatypes
Single-sign on using X.509 certificates (in BETA currently)
We will update the documentation for Cerana in the upcoming weeks. So stay tuned.
Download & Get Down to Work
If you have an existing installation of TheHive, please follow the migration guide.
If you are performing a fresh installation, read the installation guide corresponding to your needs and enjoy. Please note that you can install TheHive using an RPM or DEB package, use Docker, install it from a binary or build it from sources.
Initially planned for Nov 17, 2017, Cerana, the next major release of TheHive, is delayed by a few days for three reasons: fixing a few minor but nonetheless irking bugs, quality assurance, and adding small but nice features that would have otherwise required a new database migration a short while after performing one during the upgrade to this new version.
The new release date for Cerana (TheHive 3.0.0) is Dec 5, 2017, the same day we’ll have our second joint workshop with the fine people of the MISP Project during the Botconf conference in Montpellier, France (food, wine, sightseeing… well you get the picture).
If we should mention a single major Cerana feature to convince you to install it or take it for a spin, that would be dynamic dashboards, with no hesitation.
While it was enough for a start, the Statistics module doesn’t take advantage of the underlying Elasticsearch storage and the many ways we can play with all the data that analysts keep feeding to TheHive. Not only that but what about custom fields, alerts, and so on? Enter Dynamic Dashboards.
To put it simply, Cerana will allow you to analyze TheHive data (almost) any way you want and chart it using different options: how many alerts of a certain type have been received during a given period? Over all the cases that are recorded within TheHive, how many observables with a specific tag and flagged as IOCs are there? …
Dashboards can be private to an analyst, shared with fellow TheHive users, imported from another instance and exported. By adding the import/export feature, we hope to foster sharing within TheHive community where teams would impart useful dashboards to their peers. Graphs can also be saved as images to add to reports.
To alleviate upgrades, Cerana will come with a few dashboards out of the box to mimic the Statistics module hence you won’t lose existing functionality when you make the move. At this stage, we’d like to remind you that we only support the current release and the previous one. When Cerana will be published, we’ll obviously support it (genius, n’est-ce pas ?) as well as Mellifera 2.13.2. Nothing else.
Cerana will also give you the ability to import and export case templates, a feature that has been requested by our growing user base. This could be a first step towards a global repository where case templates can be shared, refined and created according to common standards, regulations or compliance requirements. Think LPM in France, NIS in Europe, GDPR, etc. Case templates will also be improved to contain default metrics values if needed and automatically assign tasks to given analysts.
Another addition worth mentioning is the sighted flag for IOCs. When an analyst flags an observable as IOC and as sighted, it means that observable is not simply something coming from a sandbox analysis (think C2) or from a 3rd party but was confirmed as being used by a threat actor in your network. In a later release, exporting cases to MISP instances will make use of this new flag to feed MISP attribute sightings. The sighted value will also be used in the future to improve alert previewing.
Last but not least, Cerana will supervise the ‘health’ of the Cortex and MISP instances it is integrated with. The Cortex and MISP logos at the bottom right corner of TheHive UI appear when integration with those products is enabled. They will also have a coloured circle to indicate health:
Green: TheHive can reach all of the configured Cortex/MISP instances.
Orange: TheHive cannot reach all of them.
Red: no instance can be reached.
There are other areas (the About page, the observable analysis buttons…) where the health of Cortex and/or MISP can be monitored.
Now, if you don’t mind, we have some coding to do. We’d better get back to it if we want to give you a luscious release. À bientôt !
Following popular demand, the chefs at TheHive Project‘s code kitchen are happy to announce the immediate availability of Cortex4py.
What Is It?
Cortex4py is a Python API client for Cortex, a powerful observable analysis engine where observables such as IP and email addresses, URLs, domain names, files or hashes can be analyzed one by one using a Web interface or en masse through the API.
Cortex4py allows analysts to automate these operations and submit observables in bulk mode through the Cortex REST API from alternative SIRP platforms (TheHive has native support for one or multiple Cortex instances) and custom scripts.
To install the client, use PIP:
$ sudo pip install cortex4py
How Much Does it Cost?
Cortex4py is released under an AGPL license as all the other products we publish to help the IR community fight the good fight. So apart from the effort it’ll cost you to install and use, the price of our software is nada, zero, rien. But if you are willing to contribute one way or another, do not hesitate to drop us an email at firstname.lastname@example.org or contact us via Twitter.
Ahead of the imminent release of Mellifera 12 (TheHive 2.12.0), a new, major (as in MAJOR) version of your (soon to be?) favorite Security Incident Response Platform, we’ve made rather significant changes to Cortex analyzers and released a new version of the CortexUtils Python library.
click on Import templates button and select the downloaded package
CortexUtils has been updated to include a new function called build_taxonomy() which is required for analyzers relying on the Python library we released to make their development development easier.
Mini-Reports in The Observable Tabs
Starting from Mellifera 12 (TheHive 2.12.0), mini-reports will be displayed in the observable tab in each case as soon as an analysis has been completed. Now analyzers compute their short/mini reports and put them in the summary section of their JSON output, ready for consumption. TheHive 2.12.0 and up will no longer create them on-the-fly.
The mini-reports of all the analyzers have been updated to comply with a taxonomy that is similar to the one we were already using for VirusTotal: VT:Score="14/56”. A “maliciousness” level was already included in TheHive’s analyzer templates and we used a specific color to display each level. This level is now produced directly by the analyzers:
info / blue: the analyzer produced an information, and the short report is shown in blue color in TheHive.
safe / green : the analyzer did not find anything suspicious or the analyzed observable is safe (according to the analyzer). TheHive displays the short report in green color.
suspicious / orange : the analyzer found that the observable is either suspicious or warrants further investigation. The short report is orange colored in TheHive.
malicious / red : the analyzer found that the observable is malicious. The short report is displayed by TheHive in red color as show below:
The short report is built with the summary() function of an analyzer. The build_taxonomy() of cortexutils mentioned earlier should help building it.
The MISP analyzer has been updated to version 2.0 and includes new functionality submitted by our long-term contributor Nils Kuhnert from CERT-Bund (thanks a heap!). Unlike the previous version, v 2.0 will let you search for an observable in multiple MISP servers at the same time.
The analyzer accepts a truckload of datatypes as input. To make it work, install the pymispPython library. It should already have been installed if you are just updating your current analyzers. You will also have to change Cortex configuration file (application.conf) for this new version:
Important note: You have to adjust your existing configuration to match the one shown above. The certpath variable can be left blank if you are not using a self-signed certificate.
When called from TheHive, the following output is produced:
The short report will show the number of unique events found in all MISP servers while the long report will show information of each matching event in each MISP server.
The CERTatPassiveDNS analyzer is a new submission by Nils (thanks again). It lets you check the CERT.at PassiveDNS service for a given domain or hostname. It takes domains and FQDN as input.
Access to the CERT.at service is allowed to trusted partners only. If you think you qualify, please contact CERT.at. You do not need to add specific information into the Cortex configuration file to benefit from this analyzer as it calls the whois system command to perform the pDNS requests.
When called from TheHive, the following output is produced:
The latest version of the Cortex-analyzers repository also include the following bug fixes and improvements:
#61: fix typos in two requirements.txt files – by Michael Salsone
#65: update the Joe Sandbox analyzer’s long report to support version 19.0.0
#67: fixed mistake in the FireHol analyzer – by Nils Kuhnert
TheHive, Cortex and MISP work nicely together and if you’ve read our June-Dec 17 roadmap post, the integration of our products with the de facto threat sharing platform will get better in a few months.

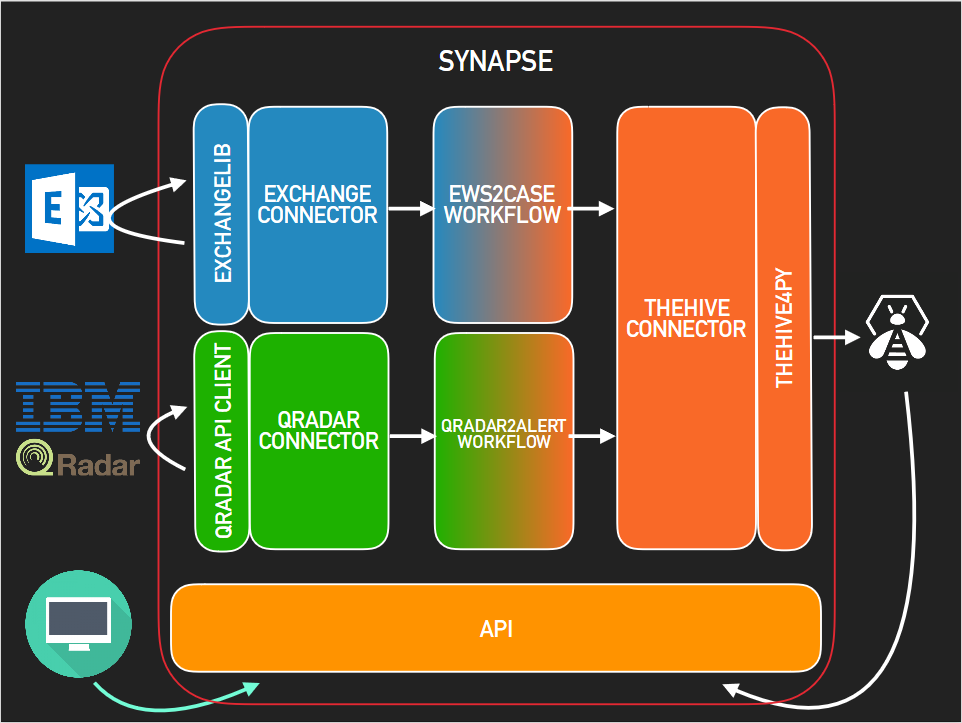

During the FIRST conference presentation we gave last week, we displayed a picture that we will use here to try to explain how these three open source and free products integrate with one another.
TheHive is a Security Incident Response Platform (SIRP). It can receive alerts from different sources (SIEM, IDS, email. etc.) via its REST API. This is where alert feeders come into play.
Think of an alert feeder as a specialized program which consumes a security event (SIEM alert, email report, IDS alert, and so on), parses it and outputs an alert that its sends to TheHive through TheHive4py, the Python library we provide to interact with TheHive’s REST API.
We do not supply such feeders but developing them should be straightforward. If not, let us know and we’ll do our best to help you out.
Any alert sent to TheHive will show up in its Alerts pane. In addition to the sources mentioned above, new or updated MISP events will show up as well in that area if you configured TheHive to connect to one or several MISP instances. If so, TheHive will poll those MISP instance(s) at every interval looking for new or updated events. If there are any, TheHive will generate an alert which will end up in the Alerts pane.
Alerts can be ignored, mark as read, previewed and imported. When an alert is imported, it becomes a case that needs to be investigated.
A case can be generated from an alert or created from scratch. It is subdivided into tasks (think identification, containment, eradication, check proxy logs, and so on) and observables (IP addresses, hashes, email addresses, domain names, URLs…). When analysts are working on tasks, they add logs as they go. In TheHive’s terminology, logs are text entries which may contain attachments to help analysts record what they have been doing. Logs can be written using Markdown or a rich-text editor.
You don’t need to add the same tasks over and over when working on cases belonging to a given category (DDoS, Malspam, APT, …). You can create custom templates to which you add tasks as shown below. This is very useful when you are dealing with alerts so that when you import them, you can select which case template you’d like to apply and there you go!
Observables can be tagged, flagged as IOCs, and analyzed. When the investigation is well in progress or completed, you may want to share the resulting IOCs or a subset of those with partners and peers. TheHive will support the ability to export that data to MISP in September 2017. Until then, you can still export your IOCs as text, CSV or as a MISP-compatible format that you can use to add them to your MISP instance using the freetext editor. TheHive can export IOCs/observables in protected (hxxps://www[.]somewhere[.]com/) or unprotected mode.
Every observable must have a TLP (Traffic Light Protocol) level. By default, any added observable is considered TLP:AMBER. Please note that the TLP is taken into account by some analyzers. Wait! Analyzers?
Cortex is our standalone analysis engine and a perfect companion for TheHive and MISP. Analysts can use it to analyze observables using its Web UI, in which case they can be submitted only one at a time. The Web UI should really be limited to quick assessments of observables before creating a case in TheHive (or in an alternate SIRP). The power of Cortex really comes into play when you use its REST API. TheHive speaks natively to Cortex (as MISP does). Moreover, TheHive can leverage one or several Cortex servers.
An analyzer can be written in any programming language supported by Linux though all of our current analyzers are written in Python. This is because we provide a Python library called Cortexutils which contains a set of utility classes that make it easier to write an analyzer in Python.
Analyzers such as VirusTotal, PassiveTotal or DomainTools can provide different analysis services. Let’s take VirusTotal as an example. You can scan a file or URL. That’s one flavor. You can also obtain the latest available report on VirusTotal.com for a file, hash, domain or IP address. That’s a second flavor. So the VirusTotal analyzer has two flavors.
How about PassiveTotal? It has 8 flavors: unique resolutions lookup, SSL certificate history lookup, malware lookup, passive DNS lookup, data enrichment lookup, SSL certificate details lookup, OSINT lookup and WHOIS data lookup.
The MISP Search Analyzer
At this point, we need to mention a special analyzer that may create some confusion if not understood correctly: the MISP Search analyzer. Thanks to it, Cortex has the ability to search observables within a MISP instance as represented by the arrow that goes from the Analyzers to MISP.
When an observable is found in an event, Cortex will return the number of records found (i.e. the number of events where the observable has been found) and a list of links to those events with additional data.
The current version of the MISP Search analyzer can only search within a single MISP instance but in the near future, it will be able to support multiple ones.
MISP Expansion Modules
Besides its own analyzers (which include MISP Search described above), Cortex can also invoke MISP expansion modules. These are normally used by MISP to enrich attributes within events but Cortex can also take advantage of them to analyze observables.
There is some overlap between the native Cortex analyzers and MISP expansion modules. When choosing between a native analyzer or an expansion module, we highly recommend you select the former. The expansion modules are deactivated in the default Cortex configuration.
When you submit an observable for analysis, Cortex will create a job and, if successful, it will generate an analysis report in JSON format. TheHive has the ability to parse those results and present them in a human-friendly fashion thanks to report templates we offer for free. So when you’ll submit an observable to Cortex from TheHive, you’ll get back a short (or mini) report and a long one. The first can be thought of as a really tiny Exec Analyst Summary while the second provides more insight and details.
Calling Cortex from MISP
In addition to the expansion modules we have just mentioned, MISP 2.4.73 and up can enrich attributes using Cortex analyzers. The configuration is pretty straightforward. So if all you are concerned about is threat intelligence and sharing, you may augment your visibility into a given threat represented as a MISP event by leveraging all current 23 Cortex analyzers and any future ones.
TheHive, Cortex and MISP are three open source and free products that can highly aid you combat threats and keep the ‘monsters’ at bay.
TheHive, as a SIRP, allows you to investigate security incident swiftly in a collaborative manner. Several analysts can work simultaneously on tasks & cases . While cases can be created from scratch, TheHive can receive alerts from different sources thanks to alert feeders which consume security events generated by multiple sources and feed them into TheHive using TheHive4py Python library. TheHive can also sync to one or several MISP instances to receive new and updated events which will appear in the alert pane with all the other alerts generated by other sources. Analysts can then preview new alerts to decide whether they need to be acted upon. If so, they can transform them into investigation cases using templates.
To analyze the observables collected in the course of an investigation and/or imported from a MISP event, TheHive can rely on one or several Cortex analysis engines. Cortex is another standalone product that we have developed which sole purpose is to allow you to analyze observables at scale thanks to its large number of analyzers, MISP expansion modules and any analyzer you might have developed on the side. Cortex has a REST API that can be used to empower other security products such as ‘analytics’ software, alternate SIRPs or MISP.
The highly popular threat sharing platform can indeed enrich attributes thanks to Cortex as it has a native integration with it. And in a few months, you will also be able to export cases from TheHive as MISP events that you can share with peers and partners.
If you do share, you do care about our collective mission to defend thedigital assets that are under our watch from harm. So let us fight together as one.
