Unleash the Power of Dockerized Analyzers in 5 Minutes

One of the big improvements you’ll notice in Cortex 3 is the support for dockerized analyzers. And amongst some of their benefits, the installation process has been significantly simplified. So let’s assume you do not want to bang your head against Python, or other library dependencies. Then read one for a way to set up analyzers and run them quickly.

The following instructions have been tested on Ubuntu 18.04. If you already have a Cortex instance up and running, you can jump directly to the docker installation section below.

Install System Packages

Prerequisites

  • Ensure your system contains the required packages:
sudo apt-get install apt-transport-https ca-certificates curl software-properties-common
  • Oh, and Cortex should have access to the internet 馃槈

Cortex

Configure your system to install packages from TheHive-Project repositories.

echo 'deb https://dl.bintray.com/thehive-project/debian-stable any main' | sudo tee -a /etc/apt/sources.list.d/thehive-project.list
sudo apt-key adv --keyserver hkp://pgp.mit.edu --recv-key 562CBC1C

Install Cortex:

sudo apt-get update
sudo apt-get install cortex

The Cortex files will be put in /opt/cortex. The Cortex binary will be executed using the cortex account.

The configuration file is /etc/cortex/application.conf.

The Cortex log file is /var/log/cortex/application.log.

Docker

We recommend reading the Docker documentation to install the software.

For Ubuntu 18.04, you can run the following commands:

wget -O- https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu bionic stable"
sudo apt-get update
sudo apt-get install docker-ce

Use Docker with Cortex

Start by giving the cortex account the permission to run Docker.

usermod -a -G docker cortex

Next, in the Cortex configuration file (/etc/cortex/application.conf) ensure jobs will be executed using Docker:

job {
runner = [docker]
}

Follow the Standard Analyzer Catalog

If you are a complete Cortex noob, please read the Quick Start Guide.

Configure Cortex to get the catalog with up-to-date versions of analyzers. Edit /etc/cortex/application.conf to set the catalog URLs in the analyzer configuration section as shown below:

## ANALYZERS
#
analyzer {
  urls = ["https://dl.bintray.com/thehive-project/cortexneurons/analyzers.json"]
[..]
}

Once Cortex is configured, restart the service with the following command, wait a few seconds and you should be able to connect to Cortex on https://<yourCortexHost&gt;:9001 et voil脿!

sudo service restart cortex

Important Note: The catalog analyzers.json contains information regarding versions of analyzers we consider stable and that are updated with bug fixes. This is typically synchronised with our master branch on Github. When you are using this catalog, you are de facto benefiting from the latest analyzer updates without needing to refresh anything in Cortex or setup again the configuration to get the latest version.

We also provide two additional catalogs:

  • analyzers-stable.json which strictly follows versions of analyzers if you do not want any uncontrolled updates. What does that mean in practice? You will have to click on the Refresh button in Cortex to update your analyzers, disable old ones and enable new versions. Moreover, you will also have to setup again their configuration. Typically, if you installed and setup Cortex with this catalog and the current version of FileInfo analyzers is 6.0, you won’t benefit from the next version, let’s say 6.1, unless you refresh Cortex.
  • analyzers-devel.jsonwhich contains information about new analyzers or version of analyzers that contains code that has been reviewed but not tested enough (or even not tested at all at times) to be deemed ready for production environments. This is typically synchronized with the develop branch of our Github repository.

Same goes for responders. All available catalogs for Cortex are published on bintray so you can choose the one that better fits your needs (or your risk/gambling profile :p).

More than 120 ways of Analyzing your Observables

There’s a new version of Cortex-Analyzers in cybertown and its has an awesome, mind-blowing name and that’s… wait for it… wait for it: 2.1.0.

In this new release, we added two analyzers which bring the total number to more than 120:

We could not duly test DNSSinkhole since we do not have access to the associated service. So we would really appreciate it if you could test it and聽let us know whether it works or not.

Others analyzers have been fixed or improved:

DNSSinkhole

This analyzer lets you check if an IP address has been registered in your DNS sinkhole. TheHive displays the analyzer results as follows:

DNSSinkhole analyzer: long report
DNSSinkhole analyzer: short report

TalosReputation

This analyzer lets you determine whether an IP address has been reported as a threat on Cisco Talos Intelligence service. No special access to the service is required to run the analyzer.

TheHive displays the analyzer results as follows:

Talos Reputation: long report
Talos Reputation analyzer : short report

Crt.sh

This analyzer has been enriched to display SHA-1 fingerprints. The long report format has been updated to reflect this new information.

Crt.sh analyzer: long report

FileInfo

FileInfo has been updated and is now able to parse PDF files and extract IOCs such as URLs, hosts, domains, IPs, hashes and many more.The analyzer does also support the last version of the extract-msg library.

FileInfo analyzer: IOC Parser long report
FileInfo analyzer: IOC Parser short report

VirusTotal and Python3

The VirusTotal analyzer, including all its flavours, now uses Python3 and an updated virustotal-api library.

Yeti API key

An optional API key can now be configured and used by the Yeti analyzer.

Malwares_GetReport

A hash computation has been fixed in this analyzer.

EMLParser

A first fix has been introduced to avoid this analyzer to crash when there is no content-description in content_header, and a second has been added to correct a header display issue.

IBM XForce Lookup

The analyzer has been improved to allow users to add a trailing / at the end of the API URL without breaking everything.

Updating your Analyzers in Cortex 2.x

Each analyzer and responder comes with its own, pip compatible聽requirements.txt聽file. Run the following commands to update your Cortex analyzers to the latest version:

cd path/to/Cortex-Analyzers
git pull
for I in analyzers/*/requirements.txt; do sudo -H pip2 install -U -r $I || true; done && \
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done

for I in responders/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done

Once done, do not forget to login to Cortex as an聽orgadmin聽and click on the聽Refresh Analyzers聽button.聽Refer to the online Cortex documentation聽for further details.

Dockerised Analyzers

Cortex 3.x gives you the opportunity to run dockerised analyzers and responders. This means that you no longer have to download all the git repository of Cortex-Analyzers and run lengthy commands to update your analyzers and responders.

If you want to use dockerised analyzers and responders, ensure that the URL of the catalog.json file corresponding to the Cortex-Analyzers repository is registered in application.conf. Please note that this won’t work if you are tracking the stable catalog.

After doing so, do not forget to login to Cortex as an聽orgadmin, click on the聽Refresh Analyzers聽button, then Disable and Enable again each analyzer and responder. Analyzer (and responder) updates should occur automatically as long as docker.autoUpdate is set to true in application.conf (this is the default setting).

Update TheHive Report Templates

If you are using TheHive, you must import the new report templates in your instance as follows:

  • download the updated package
  • log in TheHive using an administrator account
  • go to Admin > Report templates menu
  • click on Import templates button and select the downloaded package

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

On Spring, Bees and Cortex-Analyzers 1.16.0

Spring is here and your favorite bees are busy buzzing flowers to prepare you the most palatable honey ever. In the meantime, we are pleased to announce the immediate availability of Cortex-Analyzers 1.16.0, which adds a new responder and three new analyzers to complete an already hefty collection, bringing the total to 117 analyzers and 3 responders!

Release Overview

One responder has been added:

  • FalconCustomIOC, contributed by Michael (#421). We don’t know the last name of Michael. That could be Jordan. Who knows?

Three analyzers have been added:

We could not duly test some of these additions due to lack of access to the associated services or to our legendary laziness. So we would really appreciate it if you could test them and let us know whether they work or not.

FalconCustomIOC

The FalconCustomIOC responder let you submit observables from alerts or cases to Crowdstrike Falcon Custom IOC service.

Crowdstrike Falcon is a paid service. An account and an API key are required to configure and run this responder.

AbuseIPDB

AbuseIPDB analyzer let you determine wether an IP has been reported as malicious or not to the AbuseIPDB web service.

An account and an API key is needed to configure and use this analyzer.

TheHive displays the analyzer results as follows:

AbuseIPDB: short report
AbuseIPDB: long report

BackscatterIO

The BackscatterIO analyzer lets you query the Backscatter.io service for IPs, networks or autonomous systems (AS). It comes in two flavors:

  • BackscatterIO_GetObservations: determine whether an observables has a known scanning activity
  • BackscatterIO_Enrichment: enrich your observables with additional information

TheHive displays this analyzer results as follow:

Backscatter.io:short report

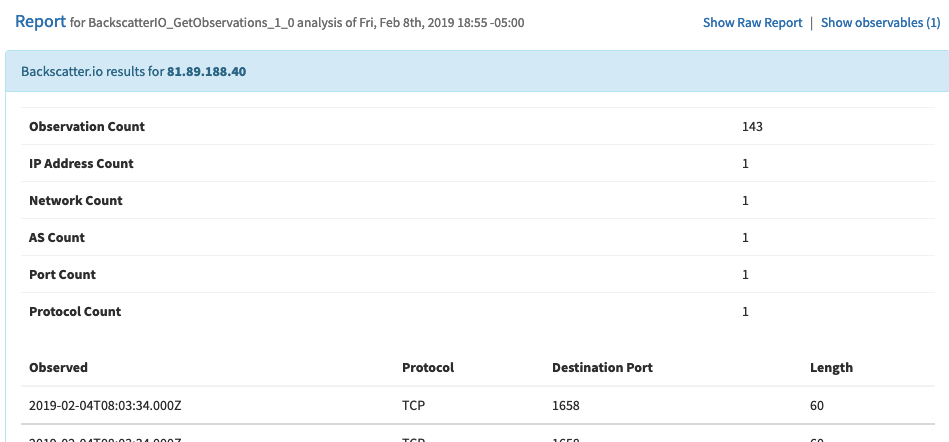

Backscatter.io GetObservations: long report
Bascatter.io GetObservations: long report

SoltraEdge

SoltraEdge analyzer lets you query any observable against theSoltra Edge platform.

To configure and use this analyzer, an account, a token key and the base URL of a SoltraEdge server are needed.

TheHive displays this analyzers result as follow:

SoltraEdge: short report
SoltraEdge: long report

Get It While Supply Lasts!

Each analyzer and responder comes with its own, pip compatible requirements.txt file. To update your Cortex analyzers to 1.16.0, run the following commands:

cd path/to/Cortex-Analyzers
git pull
for I in analyzers/*/requirements.txt; do sudo -H pip2 install -U -r $I || true; done && \
for I in analyzers/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done

for I in responders/*/requirements.txt; do sudo -H pip3 install -U -r $I || true; done

Once done, do not forget to login to Cortex as an orgadmin and click on the Refresh Analyzers button. Refer to the online Cortex documentation for further details.

Update TheHive Report Templates

If you are using TheHive, you must import the new report templates in your instance as follows:

  • download the updated package
  • log in TheHive using an administrator account
  • go to聽Admin聽>聽Report templates聽menu
  • click on聽Import templates聽button and select the downloaded package

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

Cortex-Analyzers 1.15.3 get ready for URLhaus and Cuckoo

Few improvements have been introduced in this version :

  • Proofpoint analyzer has been updated to use python3 (#417)
  • Long report of Cuckoo Sandbox analyzer has been improved to be able to display Cuckoo v. 2.0.6 reports (#418)
  • URLhaus analyzer has also been updated to use the recently introduced API (#431)

On your Cortex server, update your analyzers with the following command:

$ cd /opt/Cortex-Analyzers && git pull
$ for I in analyzers/*/requirements.txt; do sudo -H /usr/bin/python2 -m pip install -r $I
$ for I in analyzers/*/requirements.txt; do sudo -H /usr/bin/python3 -m pip install -r $I

Updating analyzers should be followed by also updating report templates. Download new report templates and add the archive in TheHive report templates.

Detailed information

Cuckoo Sandbox

Thanks to @nicpenning Cuckoo analyzer is now able to display reports from version  2.0.6 of Cuckoo. With this version, remote connections part of the report has been fixed and is now well displayed

The new cuckoo analyzer template

Notice: This fix has been reviewed by our core team, unfortunately, we have not been able to test it.

URLhaus

Abuse.ch, the operator of URLhaus recently introduced a new API for their service in order to handle bulk queries and reduce costs for their main page that uses CDNs for delivery. Because of that, thanks to Nils Kuhnert, the URLhaus analyzer has been rewritten from scratch. Also, the templates changed because there are three different API endpoints used:

The short reports now display the threat type – which currently is always malware_download and, for the hash observable type, the malware family – if given by URLhaus:

Running Into Trouble?

Shall you encounter any difficulty, please join our  user forum, contact us on Gitter, or send us an email at support@thehive-project.org. We will be more than happy to help!

The Dockerization Will not be Televised

Do you know what the following set of commands achieve?

$ cd /opt/Cortex-Analyzers
$ sudo git pull
$ for I in $(find /opt/Cortex-Analyzers -name 'requirements.txt'); do sudo -H pip2 install -U -r $I; done \
&& for I in $(find /opt/Cortex-Analyzers -name 'requirements.txt'); do sudo -H pip3 install -U \
-r $I || true; done

The answer is obvious Doctor Watson, right? These highly readable commands (pun intended) allow you to update your Cortex analyzers and responders to the latest stable versions, downloading new ones in the process, going over all the Python 2 and Python 3 dependencies to install the missing ones and upgrade the old ones to make sure they work correctly. These operations take quite a long time and cause some headaches in the process (Hello, I have Python 3.X and this dependency is no longer required, or Hi, I have an old version of Python 2 and it seems I need this other dependency).

And if you are lucky enough to get it running smoothly, you are still not done as you need to log in to the Cortex UI as an organisation administrator (unlike TheHive, Cortex supports multi-tenancy), click on the Refresh analyzers button under Organization > Analyzers then go to Organization > Responders and click on Refresh responders.

So while the answer to the opening question might be simple, updating analyzers and responders is far from being straightforward, to say the least, even if we forget the ugly fact that both are stored in a repository “conveniently” named Cortex-Analyzers*:

thehive@thehive-training:/opt/Cortex-Analyzers$ ls -d a* r*
analyzers  responders

Unnecessary Complexity Must Die

Your lovely, hard-working bees hate unnecessary complexity. Our project鈥檚 front page blatantly states our mission to bring Security Incident Response to the masses. And we have to stand by our words even if TheHive and Cortex are free, open source solutions and we do not gain anything from them save for the huge satisfaction of helping our fellow incident handlers level the fight against cybercriminals & all kinds of other animals of the APT (Advanced Persistent Troll Threat) bestiary.

There is only one possible solution: simplify the installation and update process of the current, official 115 analyzers and responders we have as of this writing, the future ones and any private or unofficial ones written in other programming languages such as those developed in Go by Rosetelecom-CERT.

Docker all the Things!

Starting from Cortex 3.0, the next major release of your favourite analysis and active response engine, all analyzers and responders will be dockerized. It will no longer be necessary to install them along with their various dependencies. They will be dowloaded from our cortexengine Docker organisation. Sysadmins might also configure automatic updates.

As a side advantage of using Docker, analyzers, and responders will also be isolated from each other which gives more flexibility and possibilities.

Steve Simson. This artwork and the title of this blog post are inspired by The Revolution will not be televised, a song from the late and great Gil Scott-Heron.

For those users who have private, custom analyzers and responders that they don’t want or can’t share with the community, several options will be available:

  • Continue managing their analyzers and responders in the same way as currently supported by Cortex 2 (i.e. launch them as processes, with no isolation whatsoever).
  • Dockerize them and store them locally on their Cortex instance.
  • Dockerize them and publish them on a Docker registry, either the official one or a private registry.

A Docker image of Cortex 3 will still be provided. It will contain a Docker engine to launch dockerized analyzers and responders using DIND (Docker in Docker).

It won’t be necessary to modify the code of the current, official analyzers and responders. A drone job will monitor the analyzer and responder repository and automatically build docker images when it detects changes.

The Cortex Web interface will be slightly modified to accommodate the whole process and allow adding in-house/private Certificate Authorities to allow Cortex to smoothly perform updates in those corporate environments where TLS/SSL inspection is enabled.

Nice Movie Trailer. When is it Coming to a Theatre near me?

We are working hard to get Cortex 3 out of the oven in Q1 (of this year, yes). We will reach out to you, dear reader, in due time, to help us test it and refine it before putting it on the digital shelf for free, as usual. We will provide a smooth migration path in order to move safely your current analyzers and responders and their configuration to Cortex 3.

So to paraphrase the late and great Gil Scott-Heron:

The dockerization will not be televised

The dockerization will not be televised

The dockerization will be live.

Since you are here

The success of TheHive and Cortex continue to grow, far more than we initially foresaw. As far as we know, there are about a hundred organisations of different sizes and locations using or testing them. And as the number of users grows, so does the number of features, professional service and support requests.

We have tried addressing these requests through Creative Source, a nonprofit organisation (NPO). All but one company trusted us enough to make a donation and get tailored services for its needs in return. Most of the others either did not reply to our proposals or explained that their procurement process does not accommodate working with NPOs.

Some members of our core team are actively working on alternative options to ensure not only the viability of TheHive and Cortex as FOSS products on the long run but the ability to provide professional training, support, and services without freaking out highly bureaucratic, think-in-the-box-but-never-outside procurement departments.

Stay tuned 馃悵


(*) When the idea behind Cortex was born into our hive mind, we did not initially think about active response capabilities. So we naturally called the repository which was supposed to contain analyzers Cortex-Analyzers . When, at a later stage, we added responders, we put them in the same repository for obvious laziness pretences 聽炉\_(銉)_/炉.

Correction: February 15, 2019
Typographical errors have been corrected. Some rewording has been made for the sake of clarity.

UnshortenLink, SSRF and Cortex-Analyzers 1.15.2

We urge our fellow fighters of cybercrime and funny and not-so-funny animals-in-disguise, to update their Cortex analyzers to the latest 1.15.2 version which plugs a serious vulnerability in the Unshortenlink analyzer and fixes several bugs.

Unshortenlink Vulnerability

On Jan 24, Alexandre Basquin discovered a SSRF vulnerability in the Unshortenlink 1.0 analyzer. By exploiting it, an attacker which has access to a Cortex instance with an analyze role can scan the ports of localhost and possibly of all the hosts reachable by Cortex. This could be automated through Cortex4py by making repetitive calls to the API and thus scanning multiple ports & hosts. In essence, the attacker can perform reconnaissance thanks to Unshortenlink and gain knowledge on which ports are open and which aren’t.

Version 1.1 of Unshortenlink, included in Cortex-Analyzers 1.15.2, plugs this vulnerability by disabling submissions containing IPs & ports. Only URLs are now accepted.

Bug Fixes

Additionally, Cortex-Analyzers 1.15.2 corrects the following bugs:

  • #416: the Mailer responder now supports UTF-8 encoding.
  • #410: remove wrapping of the results produced by crt.sh as a list which ends up breaking the output of the report template. Contributed by Thomas Kastner.
  • #409: enum is not required for Python 3.4+ to make the MISP Search analyzer work.
  • #408: FileInfo’s Manalyze plugin did not work after Manalyze renamed plugin_btcaddress to plugin_cryptoaddress.
  • #406: fix a broken link in the Cymon_Check_IP report, submitted by Manabu Niseki.
  • #313: fix wrong file handling in OTXQuery.

How to Update your Analyzers?

To update your analyzers to version 1.15.2, please read the Updating section of the Cortex installation guide.

Since the version numbers of few analyzers have changed, you’ll need to connect as an orgadmin to Cortex to refresh the analyzer list, disabling old ones and enabling the new versions.

TheHive Report Templates

If you are using TheHive, you must import the new report templates in your instance as follows:

  • download the updated package
  • log in TheHive using an administrator account
  • go to Admin > Report templates menu
  • click on Import templates button and select the downloaded package

Wait a Minute! Where’s the Blog Post about 1.15.1?

Good catch! There was no blog post about Cortex-Analyzers 1.15.1. Call us lazy but there was nothing Earth-shattering, pole-shifting in that release. Nonetheless, here are a list of fixes included in that release and from which you鈥檒l inherit automatically if you update 1.15.0 to 1.15.2 directly:

  • #402: Malwares analyzer code relied on functionality that鈥檚 only available in Python聽3.7+. It has been fixed to work with 3.4 and up thanks to the work of Arcuri Davide.
  • #404: fixes a bad folder renaming in the HIBP (Have I Been Pwned) analyzer.
  • #398: MISP Search analyzer wouldn鈥檛 run without the enum dependency. Contributed by Mars Huang. Later improved in 1.15.2 (see above).

No Luck Luke?

If something does not work as expected, keep calm and ask on our聽user forum, reach out to fellow users on聽Gitter, or send聽us an email at聽support@thehive-project.org.

New Year, New Analyzers

Dear fellow incident handlers and cybercrime fighters around the world, the galaxy, the known and the unknown universe, first and foremost, all TheHive Project’s team would like to wish a wonderful new year 2019 to you and to your cherished relatives. We truly hope that eagles, pandas, kittens, babars, bears and all sorts of animals will stay out of the way. And remember that you don’t need to go bankrupt by purchasing so-called Next Gen鈩 magical solutions that work only when there’s a full moon and the page number of the book you are currently reading is 42 to investigate threats 馃槈

We would like to begin the year by introducing version 1.15.0 of Cortex analyzers, bringing the total number of analyzers to a whopping 113! And thanks to Kyle Parrish, this release improves the Mailer responder to allow you to specify a custom port number for your SMTP server and adds a new one to blacklist observables on Cisco Umbrella utilizing the聽Enforcement API. The Cisco Umbrella Blacklister responder will then add the tag Umbrella:blockedto the observable.

Cortex-Analyzers 1.15.0 also include fixes and enhancements for Eml_Parser, IBM X-Force, Fortiguard, and Shodan. Most of these modifications were contributed by our continuously growing user community. Thanks to all of those who help us in our mission to provide free and open source security incident response tools to the masses!

Please read the relevant sections in the Cortex installation guide to install or update your analyzers and responders in order to benefit from all this sweet & tasty honey.

New Analyzers

The following analyzers have been added:

Cyberprotect

This analyzer lets you query the Cyberprotect ThreatScore service for domains and IP addresses. No configuration is needed and it can be used out of the box.

TheHive displays the analyzer results as follows:

Have I Been Pwned

The HIBP_Query analyzer lets you check email addresses on Have I Been Pwned. You can use an optional parameter to include unverified breaches in the search results. Otherwise, it can be used without any additional configuration.

When called from TheHive, results would display as such:

PatrOwl

As it name states, The Patrowl_GetReport analyzer will let you get the current PatrOwl report for a FQDN, a domain name or an IP address. You need a running PatrOwl instance or to have access to one to use the analyzer.

If you fire it from TheHive, it would display results as follows:

SecurityTrails

This analyzer comes in two flavors in order to get Whois data and Passive DNS details using SecurityTrails. To use both flavors, you will need an account for the service to retrieve the associated API key, which you need to configure the analyzers.

SecurityTrails_Passive_DNS displays results in TheHive as follows:

The Whois variant produces reports such as:

Cisco Umbrella

In addition to Cisco Umbrella Investigate, you can now query the Umbrella Reporting API for recent DNS queries and their status for a domain name using the new Umbrella_Report analyzer.

New Shodan Flavors

In addition to Shodan_Host and Shodan_Search, which allow you to obtain Shodan information on a host and the search results for a domain name, now you can get domain resolutions (Shodan_DNSResolve), obtain scan history results for an IP address (Shodan_Host_History), get information on a domain (Shodan_InfoDomain) and the reverse DNS resolutions for an IP address (Shodan_ReverseDNS).

DomainTools

The following DomainTools flavors were added to this release:

  • DomainTools_HostingHistory: get a list of historical registrant, name servers and IP addresses for a domain.
  • DomainTools_ReverseIPWhois: get a list of IP addresses which share the same registrant information. It applies to a mail, IP, or domain.

Moreover, please note that DomainTools_WhoisLookup now handles IP addresses in addition to domains and provides parsed results. DomainTools_WhoisLookup_IP is thus not needed anymore. Instead, DomainTools_WhoisLookupUnparsed has been added to do the same as DomainTools_WhoisLookup, except that the output results are unparsed.
